Thermal contact and heat flux

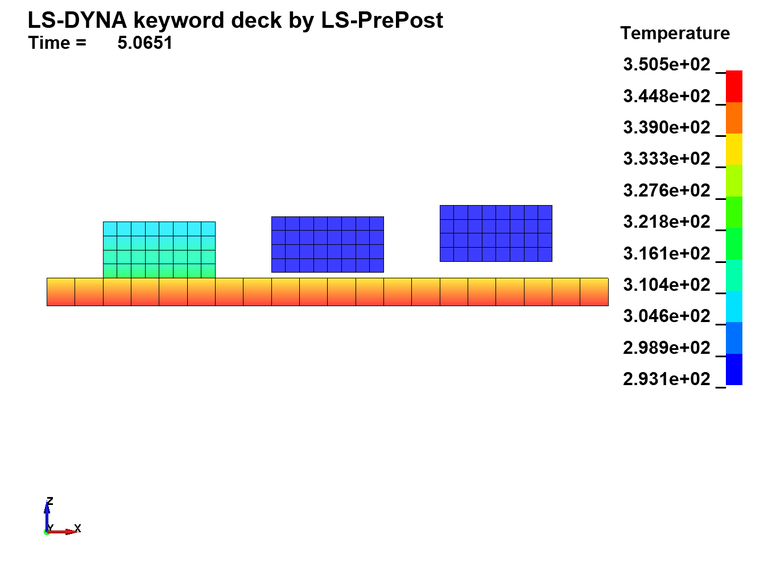

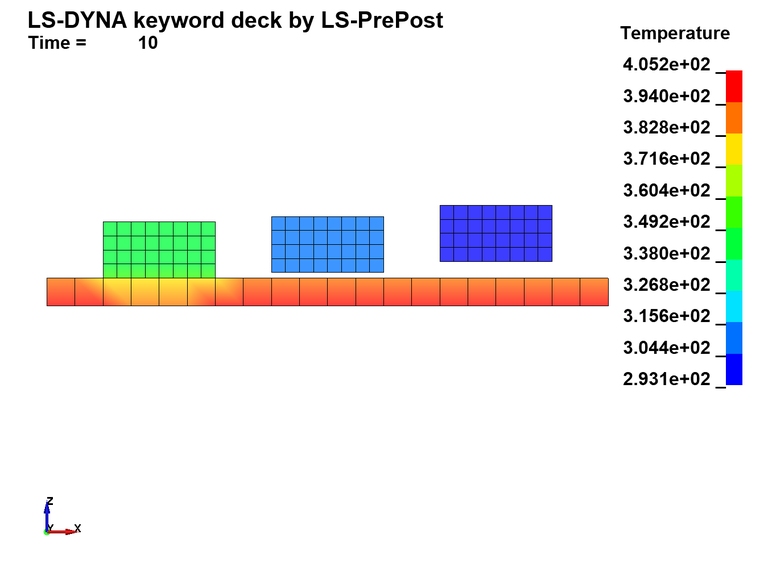

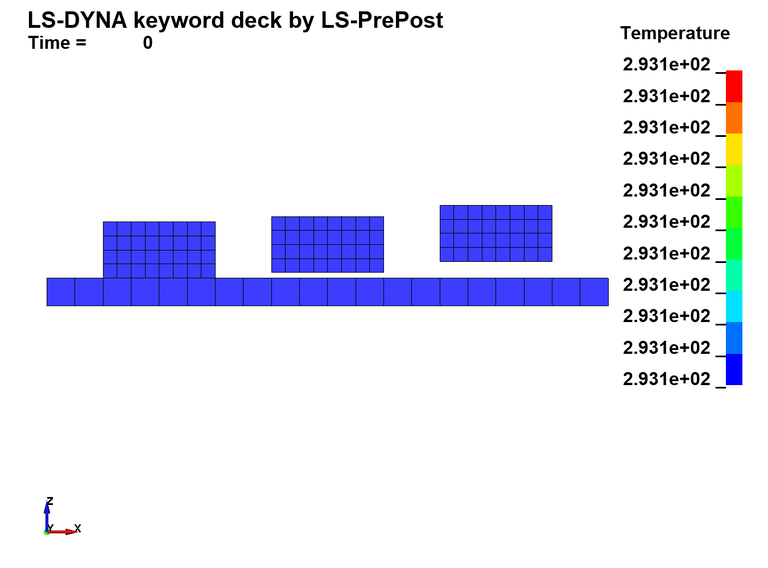

A heating plate is heated up through a heat flux. Parts on top of this plate can exchange heat via contacts. This is shown in this example. A component is in direct contact and exchanges heat via heat conductivity. Another component is very close to the heat source and exchanges heat via a simplified heat convection and radiation formulation. Another component is located outside the contact range and does not exchange heat.

*BOUNDARY_FLUX_SET
*CONTACT_SURFACE_TO_SURFACE_THERMAL_ID
*CONTROL_SOLUTION
*CONTROL_TERMINATION
*CONTROL_THERMAL_SOLVER
*CONTROL_THERMAL_TIMESTEP
*DATABASE_BINARY_D3PLOT
*DATABASE_GLSTAT
*DATABASE_MATSUM
*DATABASE_TPRINT
*DEFINE_CURVE
*END
*INCLUDE
*INITIAL_TEMPERATURE_SET
*KEYWORD
*MAT_THERMAL_ISOTROPIC
*PART
*SECTION_SOLID
*SET_PART_LIST
*TITLE

*KEYWORD
$
$=============================CONTROL DEFINITIONS ==============================
$
*TITLE
Thermal contact between heating plate and parts
*CONTROL_SOLUTION
$ thermal analysis
$     soln       nlq     isnan     lcint     lcacc     ncdcf
         1
*CONTROL_THERMAL_SOLVER
$ transient thermal analysis
$    atype     ptype    solver     cgtol       gpt    eqheat     fwork       sbc
         1         1        11
$   msglvl    maxitr    abstol    reltol     omega                           tsf

*CONTROL_THERMAL_TIMESTEP
$       ts       tip       its      tmin      tmax     dtemp      tscp      lcts
         1                 0.1
*CONTROL_TERMINATION
$   endtim    endcyc     dtmin    endeng    endmas     nosol
        10
$
$================================ OUTPUTDATA ===================================
$
*DATABASE_BINARY_D3PLOT
$       dt
       0.1
*DATABASE_GLSTAT
$       dt
       0.1
*DATABASE_MATSUM
$       dt
       0.1
*DATABASE_TPRINT
$       dt
       0.1
$
$============================== PART DEFINITIONS ===============================
$
*PART
$ title
heating_plate
$      pid     secid       mid     eosid      hgid      grav    adpopt      tmid
         1         1         0         0         0         0         0         2
*PART
$ title
cube_contact
$      pid     secid       mid     eosid      hgid      grav    adpopt      tmid
         2         1         0         0         0         0         0         1
*PART
$ title
cube_close
$      pid     secid       mid     eosid      hgid      grav    adpopt      tmid
         3         1         0         0         0         0         0         1
*PART
$ title
cube_far
$      pid     secid       mid     eosid      hgid      grav    adpopt      tmid
         4         1         0         0         0         0         0         1
$
$============================= SECTION PROPERTIES ==============================
$
*SECTION_SOLID
$    secid    elform
         1        -1
$
$======================== THERMAL MATERIAL PROPERTIES ==========================
$
*MAT_THERMAL_ISOTROPIC
$ zinc
$     tmid       tro     tgrlc    tgmult      tlat      hlat
         1   7.13e-9
$       hc        tc
    3.88e8     110.0
*MAT_THERMAL_ISOTROPIC
$ steel
$     tmid       tro     tgrlc    tgmult      tlat      hlat
         2   7.85e-9
$       hc        tc
    4.60e8      40.0
$
$=======================NODE/ELEMENT/SET/SEGMENT DEFINTIONS ====================
$
*INCLUDE
06_heating_plate_parts.k
$
$*SET_SEGMENT_TITLE     segments_plate_bottom     sid 1
$
*SET_PART_LIST
$      sid
         5
$     pid1      pid2      pid3
         2         3         4
$
$=========================== CONTACT DEFINITIONS ===============================
$
*CONTACT_SURFACE_TO_SURFACE_THERMAL_ID
1,contact
$     ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr
         5         1         2         3
$       fs        fd        dc        vc       vdc    penchk        bt        dt

$      sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf

$        k      frad        h0      lmin      lmax    ftoslv
       0.1   6.3E-12      50.0      0.01       2.0
$ frad based on emissivity e1=e2=0.2
$==================== THERMAL BOUNDARY and INITIAL CONDITIONS ==================
$
*INITIAL_TEMPERATURE_SET
$  nid/sid      temp       loc
         0    293.15
*BOUNDARY_FLUX_SET
$     ssid
         1
$     lcid      mlc1      mlc2      mlc3      mlc4       loc     nhisv
       101      -1.0      -1.0      -1.0      -1.0
*DEFINE_CURVE
$     lcid      sidr       sfa       sfo      offa      offo    dattyp
       101         0         1         1         0         0         0
$   time    ,    heat flux
0.0,0.0
1.0,200.0
11.0,200.0
$
*END
