FEM acoustics with Impedance boundary conditions

A simple cabin model with seats shows how to set up multiple boundary conditions and how to define impedance boundary conditions. Example 9.4 from LS-Dyna training class NVH, Fatigue and Frequency Domain Analysis with LS-DYNA by Yun Huang.

*CONTROL_TERMINATION
*DATABASE_BINARY_D3PLOT
*DATABASE_FREQUENCY_BINARY_D3ACS
*DEFINE_CURVE
*DEFINE_CURVE_TITLE
*ELEMENT_SOLID
*END
*FREQUENCY_DOMAIN_ACOUSTIC_FEM
*KEYWORD
*MAT_ELASTIC_FLUID
*NODE
*PART
*SECTION_SOLID
*SET_NODE_LIST
*SET_SEGMENT_TITLE
*TITLE

*KEYWORD
*TITLE

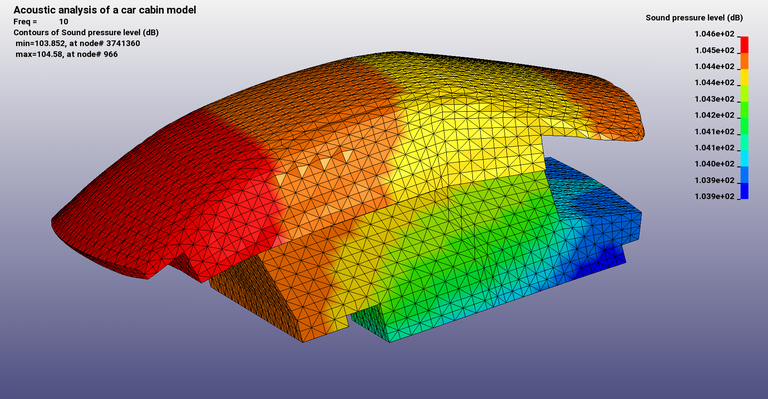

Acoustic analysis of a car cabin model by FEM
*FREQUENCY_DOMAIN_ACOUSTIC_FEM
1.2100E-12  343000.0      10.0     500.0        99                       2.0e-11
                   0
         1         0
         1         2        11         3        10        30        1.
         2         2        41                  20        30        1.
       200         1
*DATABASE_FREQUENCY_BINARY_D3ACS
         1
*CONTROL_TERMINATION
  0.187970         0     0.000     0.000 50.000000
*DATABASE_BINARY_D3PLOT
  0.001000
         0
*PART
acoustic medium
         1         1         1
*SECTION_SOLID
         1        10
*MAT_ELASTIC_FLUID
         1  1.220000     0.000     0.000     0.000     0.000 141.03000
     0.000     0.000
*SET_NODE_LIST
       200     0.000     0.000     0.000     0.000
      8106     20615
*DEFINE_CURVE_TITLE
Velocity
        10         0     0.000     0.000     0.000     0.000         0
              10.000               7.000
             500.000               7.000
*DEFINE_CURVE_TITLE
Impedance
        20         0     0.000     0.000     0.000     0.000         0
              10.000           4.1503e-7
             500.000           4.1503e-7
*DEFINE_CURVE
        30         0     0.000     0.000     0.000     0.000         0
              10.000               0.000
             500.000               0.000
*ELEMENT_SOLID
*NODE
*SET_SEGMENT_TITLE
*SET_SEGMENT_TITLE
*END
