Metal forming III

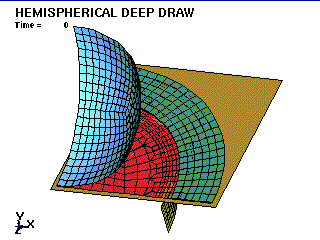

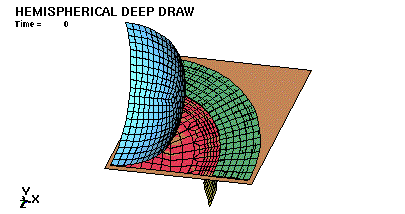

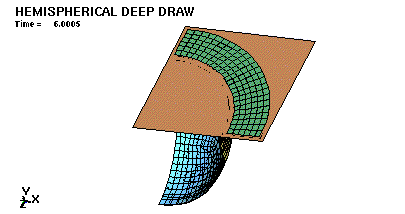

A simple deep drawing example. Symmetric boundary conditions are used.
https://www.dynaexamples.com/introduction/process_simulation/metal-forming-iii
https://www.dynaexamples.com/@@site-logo/LS-DYNA-Examples-Logo480x80.png
Metal forming III
A simple deep drawing example. Symmetric boundary conditions are used.
*BOUNDARY_PRESCRIBED_MOTION_RIGID *CONTACT_FORMING_ONE_WAY_SURFACE_TO_SURFACE *CONTROL_CONTACT *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_SHELL *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_HISTORY_NODE *DATABASE_MATSUM *DATABASE_NODOUT *DATABASE_RBDOUT *DATABASE_RCFORC *DEFINE_CURVE *ELEMENT_SHELL *END *KEYWORD *LOAD_SEGMENT *MAT_POWER_LAW_PLASTICITY *MAT_RIGID *NODE *PART *RIGIDWALL_PLANAR *SECTION_SHELL *SET_NODE_LIST *TITLE
