Metal forming II
The examples allows to learn about the draw bead modeling.
*BOUNDARY_PRESCRIBED_MOTION_RIGID *CONSTRAINED_EXTRA_NODES_SET *CONTACT_DRAWBEAD *CONTACT_FORMING_ONE_WAY_SURFACE_TO_SURFACE *CONTROL_CONTACT *CONTROL_ENERGY *CONTROL_HOURGLASS *CONTROL_OUTPUT *CONTROL_SHELL *CONTROL_STRUCTURED *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_BINARY_INTFOR *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_RCFORC *DEFINE_BOX *DEFINE_CURVE *ELEMENT_SHELL *END *KEYWORD *LOAD_SEGMENT_SET *MAT_PIECEWISE_LINEAR_PLASTICITY *MAT_RIGID *NODE *PART *SECTION_SHELL *SET_NODE_LIST *SET_PART_LIST *SET_SEGMENT *TITLE

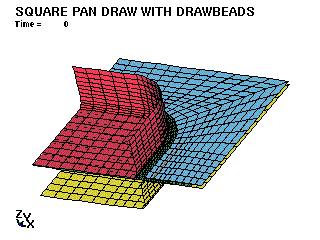

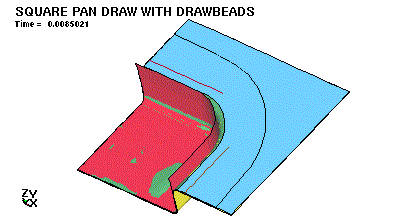

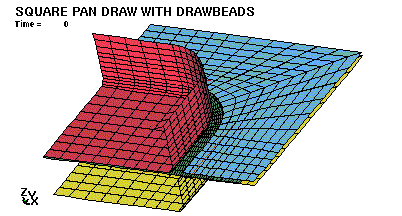

*KEYWORD *TITLE Square Pan Draw with Drawbeads *CONTROL_STRUCTURED *CONTROL_CONTACT $ f f i i i i i $ slsfac rwpnal islchk shlthk penopt thkchg orien 2.000E-02 0.0 1 1 $ i i i i f $ usrstr usrfac nsbcs interm xpenen *CONTACT_FORMING_ONE_WAY_SURFACE_TO_SURFACE $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 1 2 0 0 1 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt 0.20 20.0 $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf *CONTACT_FORMING_ONE_WAY_SURFACE_TO_SURFACE $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 1 4 0 0 1 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt 0.15 20.0 $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf *CONTACT_FORMING_ONE_WAY_SURFACE_TO_SURFACE $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 5 6 0 0 1 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt 0.15 20.0 $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf *CONTACT_DRAWBEAD $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 1 1 4 2 1 1 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt 0.10 $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf $ i i f f i $ lcdidrf lcidnf dbdth dvscl numint 3 1.7436e-1 2.0 *DEFINE_BOX $ i f f f f f f $940 i= junk $ boxid xmm xmx ymn ymx zmn zmx 1 7.500E+00 1.000E+02-1.000E+00 6.000E+00-1.000E+03 1.000E+03 *SET_NODE_LIST $ i f f f f $ sid da1 da2 da3 da4 1 $ i i i i i i i i $ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8 2569 2570 2571 2572 2573 2574 2575 2576 2577 2578 2579 *CONTACT_DRAWBEAD $ i i i i i i i i $ ssid msid sstyp mstyp sboxid mboxid spr mpr 2 1 4 2 2 1 1 $ f f f f f i f f $ fs fd dc vc vdc penchk bt dt 0.10 $ f f f f f f f f $ sfs sfm sst mst sfst sfmt fsf vsf $ i i f f i $ lcdidrf lcidnf dbdth dvscl numint 3 1.7436e-1 2.0 *DEFINE_BOX $ i f f f f f f $ boxid xmm xmx ymn ymx zmn zmx 2 0.000E+00 6.000E+00 6.000E+00 1.000E+02-1.000E+03 1.000E+03 *SET_PART_LIST $ i f f f f $ sid da1 da2 da3 da4 1 $ i i i i i i i i $ pid1 pid2 pid3 pid4 pid5 pid6 pid7 pid8 3 *SET_NODE_LIST $ i f f f f $ sid da1 da2 da3 da4 2 $ i i i i i i i i $ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8 2580 2581 2582 2583 2584 2585 2586 2587 2588 2589 2590 *CONTROL_TERMINATION $ f i f f f $ endtim endcyc dtmin endneg endmas 8.500E-03 *CONTROL_OUTPUT $ i i i i f i i $ npopt neecho nrefup iaccop opifs ipnint ikedit 0 0 0 0 2 1000 *DATABASE_BINARY_D3PLOT $ f i $ dt/cycl lcdt 2.750E-04 *DATABASE_EXTENT_BINARY $ i i i i i i i i $ neiph neips maxint strflg sigflg epsflg rltflg engflg 5 1 $ i i i 1 $ cmpflg ieverp beamip cmp *DATABASE_BINARY_D3THDT $ f i $ dt/cycl lcdt 5.500E-02 *DATABASE_BINARY_INTFOR $ f i $ dt/cycl lcdt 2.75E-04 *DATABASE_GLSTAT $ f i $ dt/cycl lcdt 1.375E-04 *DATABASE_RCFORC $ f i $ dt/cycl lcdt 1.375E-04 *CONTROL_ENERGY $ i i i i $ hgen rwen slnten rylen 2 1 2 1 *CONTROL_SHELL $ f i i i i i i $ wrpang itrist irnxx istupd theory bwc miter 0 *CONTROL_HOURGLASS $ i f $ ihq qh 4 *MAT_PIECEWISE_LINEAR_PLASTICITY $ 1 f f f f f f f $ mid ro e pr sigy etan eppf tdel 1 2.523e-2 10.00E+06 0.330 20400.0 0.000 0.0 0.0 $ f f f f $ c p lcss lcsr $ f f f f f f f f $ eps1 eps2 eps3 eps4 eps5 eps6 eps7 eps8 0.000E+00 5.000E-02 1.000E-01 2.000E-01 3.000E-01 4.000E-01 5.000E-01 1.000E+00 $ es1 es2 es3 es4 es5 es6 es7 es8 2.040E+04 3.247E+04 3.889E+04 4.657E+04 5.174E+04 5.576E+04 5.909E+04 7.077E+04 *MAT_RIGID $ f f f f f f f f $ mid ro e pr n couple m alias 2 7.5051e-4 10.00E+06 0.290 $ f f f $ cmo con1 con2 $ f f f f f f $ lco/a1 a2 a3 v1 v2 3 *SECTION_SHELL $ i i f f f f i $ sid elform shrf nip propt qr/irid icomp 1 2 5 $ f f f f f $ t1 t2 t3 t4 nloc 4.000E-02 4.000E-02 4.000E-02 4.000E-02 0.000E+00 *SECTION_SHELL $ i i f f f f i $ sid elform shrf nip propt qr/irid icomp 2 2 3 $ f f f f f $ t1 t2 t3 t4 nloc 4.000E-02 4.000E-02 4.000E-02 4.000E-02 0.000E+00 *PART $ c $ head PUNCH - RIGID $ i i i i i i $ pid sid mid eosid hgid adpopt 1 2 2 0 0 0 *PART $ c $ head PAD - RIGID $ i i i i i i $ pid sid mid eosid hgid adpopt 2 2 2 0 0 0 *PART $ c $ head WORKPIECE - ALUMINUM $ i i i i i i $ pid sid mid eosid hgid adpopt 3 1 1 0 0 0 *PART $ c $ head PAD - RIGID $ i i i i i i $ pid sid mid eosid hgid adpopt 4 2 2 0 0 0 *DEFINE_CURVE $ i i f f f f $ lcid sidr scla sclo offa offo 1 0 0.000E+00 0.000E+00 0.000E+00 0.000E+00 $ f f $ a o 0.000E+00 0.000E+00 3.500E-03 0.000E+00 3.750E-03 1.010E+02 4.000E-03 2.000E+02 4.250E-03 2.940E+02 4.500E-03 3.800E+02 4.750E-03 4.580E+02 5.000E-03 5.240E+02 5.250E-03 5.770E+02 5.500E-03 6.150E+02 5.750E-03 6.390E+02 6.000E-03 6.470E+02 6.250E-03 6.390E+02 6.500E-03 6.150E+02 6.750E-03 5.770E+02 7.000E-03 5.240E+02 7.250E-03 4.580E+02 7.500E-03 3.800E+02 7.750E-03 2.940E+02 8.000E-03 2.000E+02 8.250E-03 1.010E+02 8.500E-03 0.000E+00 *DEFINE_CURVE $ i i f f f f $ lcid sidr scla sclo offa offo 2 0 0.000E+00 0.000E+00 0.000E+00 0.000E+00 $ f f $ a o 0.000E+00 0.000E+00 2.500E-03 0.800E+02 3.500E-03 1.950E+02 8.500E-03 1.950E+02 *DEFINE_CURVE $ i i f f f f $ lcid sidr scla sclo offa offo 3 0 0.000E+00 0.000E+00 0.000E+00 0.000E+00 $ f f $ a o $ DEPTH FORC/LGTH 0.000E+00 0.000E+00 1.200E-01 1.300E+02 1.500E-01 2.000E+02 1.800E-01 5.000E+02 *BOUNDARY_PRESCRIBED_MOTION_RIGID $ i i i i f i $ pid dof vad lcid sf vid 1 3 0 1 -1.000E+00 *LOAD_SEGMENT_SET $ i i f f $ ssid lcid sf at 7 2 -1.0 0.0 *CONSTRAINED_EXTRA_NODES_SET $ i i $ pid nsid 2 3 *SET_NODE_LIST $ i f f f f $ sid da1 da2 da3 da4 3 $ i i i i i i i i $ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8 2569 2570 2571 2572 2573 2574 2575 2576 2577 2578 2579 2580 2581 2582 2583 2584 2585 2586 2587 2588 2589 2590 *NODE $ i8 f f f i i $ node x y z tc rc *ELEMENT_SHELL $ i i i i i i $ eid pid n1 n2 n3 n4 *SET_SEGMENT $ i f f f f $ sid da1 da2 da3 da4 $ i i i i f f f f $ n1 n2 n3 n4 a1 a2 a3 a4 *END
