Two Plates

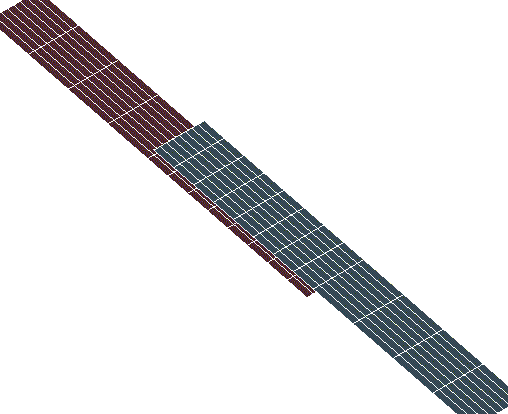

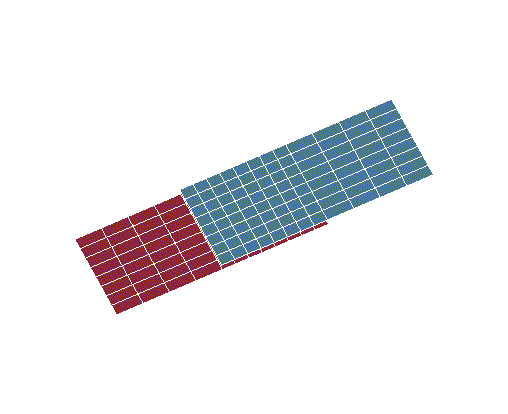

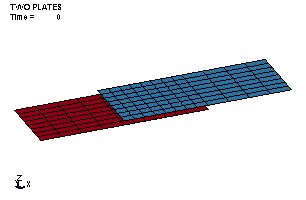

2 Plates joined by a spot-weld. Exercise to define cross sections and prescribed boundary conditions.

*CONTACT_AUTOMATIC_SINGLE_SURFACE
*CONTROL_ENERGY
*CONTROL_OUTPUT
*CONTROL_SHELL
*CONTROL_TERMINATION
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_CROSS_SECTION_PLANE
*DATABASE_GLSTAT
*DATABASE_HISTORY_NODE
*DATABASE_MATSUM
*DATABASE_NODOUT
*DATABASE_SECFORC
*DATABASE_SWFORC
*ELEMENT_SHELL
*END
*KEYWORD
*MAT_PLASTIC_KINEMATIC
*NODE
*PART
*SECTION_SHELL
*SET_PART_LIST
*TITLE

  *KEYWORD
  *TITLE
  Two Plates
  $
  $   - two plates, one on top of the other with an overlap
  $   - material is some type of aluminum (I believe)
  $   - contact is defined (auto single surface)
  $   - modified from the plate model of 1995
  $      * refined mesh
  $      * documentation cleaned-up
  $      * re-organized
  $      * non-essentials removed
  $      * 1 cross section defined through each plate
  $      * fully integrated shell formulation (elform = 16)
  $
  $  J.D. Reid    2/1/00
  $
  $  Units: mm, kg, ms, kN, GPa, kN-mm
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $$$$  Control Ouput
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
  $
  *CONTROL_TERMINATION
  $   endtim    endcyc     dtmin    endneg    endmas
        8.00
  $
  *CONTROL_ENERGY
  $     hgen      rwen    slnten     rylen
           2         2         2
  $
  *CONTROL_OUTPUT
  $    npopt    neecho    nrefup    iaccop     opifs    ipnint    ikedit
           1         3
  $
  *CONTROL_SHELL
  $   wrpang    itrist     irnxx    istupd    theory       bwc     miter
                                         1
  $
  *DATABASE_BINARY_D3PLOT
  $       dt      lcdt
         0.2
  $
  *DATABASE_BINARY_D3THDT
  $       dt      lcdt
       99999
  $
  *DATABASE_GLSTAT
  $       dt
       0.010
  $
  *DATABASE_MATSUM
  $       dt
       0.010
  $
  *DATABASE_NODOUT
  $       dt
       0.010
  $
  *DATABASE_HISTORY_NODE
  $
  $     1022 - weld location on plate 1
  $     2032 - center, right end (max X) of plate 2
  $
  $      id1       id2       id3       id4       id5       id6       id7       id8
        1022      2032
  $
  *DATABASE_SWFORC
  $       dt
       0.010
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $$$$  Define Cross Sections
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
  $
  $$$$  Make two cross section cuts, one through each plate.
  $
  *DATABASE_SECFORC
  $       dt
       0.010
  $
  $
  *DATABASE_CROSS_SECTION_PLANE
  $     psid       xct       yct       zct       xch       ych       zch
           1      28.0       0.0       0.0     100.0       0.0       0.0
  $     xhev      yhev      xhev      lenl      lenm
        28.0       1.0       0.0
  $
  *DATABASE_CROSS_SECTION_PLANE
  $     psid       xct       yct       zct       xch       ych       zch
           2      92.0       0.0       0.0     100.0       0.0       0.0
  $     xhev      yhev      xhev      lenl      lenm
        92.0       1.0       0.0
  $
  $
  *SET_PART_LIST
  $      sid
           1
  $     pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
           1
  $
  *SET_PART_LIST
  $      sid
           2
  $     pid1      pid2      pid3      pid4      pid5      pid6      pid7      pid8
           2
  $
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $$$$  Define Contacts
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
  $
  *CONTACT_AUTOMATIC_SINGLE_SURFACE
  $     ssid      msid     sstyp     mstyp    sboxid    mboxid       spr       mpr
           0
  $
  $       fs        fd        dc        vc       vdc    penchk        bt        dt

  $
  $      sfs       sfm       sst       mst      sfst      sfmt       fsf       vsf

  $
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $$$$  Define Parts and Materials
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
  $
  *PART
  $      pid       sid       mid     eosid      hgid      grav    adpopt      tmid
  plate_1
           1         1         1
  plate_2
           2         1         1
  $
  *MAT_PLASTIC_KINEMATIC
  $      mid        ro         e        pr      sigy      etan      beta
           1   2.70e-6      68.9     0.330     0.286   0.00689
  $
  $      src       srp        fs

  $
  $
  *SECTION_SHELL
  $
  $      sid    elform      shrf       nip     propt   qr/irid     icomp
           1        16                 5.0
  $
  $       t1        t2        t3        t4      nloc
         2.0       2.0       2.0       2.0
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $$$$  Define Nodes and Elements
  $
  $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
  $
  $...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
  $
  *END
