Projectile Block

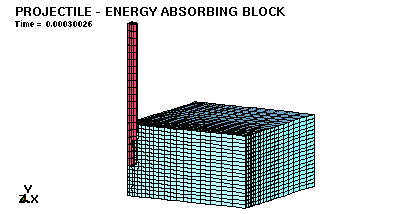

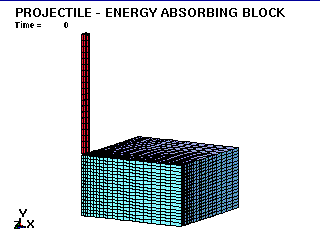

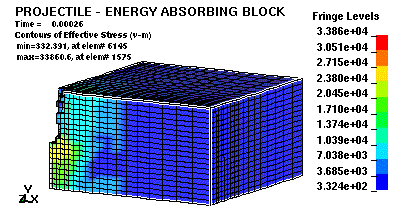

A quarter of a rigid projectile impacting an energy absorbing block is modeled. The block material is defined with a strain failure criteria, at failure strain of 0.150 elements are deleted. Eroding contact is employed.
*CONTACT_ERODING_SURFACE_TO_SURFACE *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_GLSTAT *DATABASE_MATSUM *DATABASE_RBDOUT *DATABASE_RCFORC *ELEMENT_SOLID *END *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_PIECEWISE_LINEAR_PLASTICITY *MAT_RIGID *NODE *PART *SECTION_SOLID *TITLE
*KEYWORD
*TITLE
Projectile - Energy Absorbing Block
$
$ J.D. Reid 2/9/00 - original model obtained from Jim Day (LSTC)
$
$ Units: unknown
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Control Ouput
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONTROL_TERMINATION
$ endtim endcyc dtmin endeng endmas
3.00E-04
$
*CONTROL_ENERGY
$ hgen rwen slnten rylen
2 2 2
$
*CONTROL_OUTPUT
$ npopt neecho nrefup iaccop opifs ipnint ikedit
1 3
$
$
*DATABASE_BINARY_D3PLOT
$ dt lcdt
2.00E-05
$
*DATABASE_BINARY_D3THDT
$ dt lcdt
10.0
$
$
*DATABASE_GLSTAT
$ dt
1.0E-06
$
*DATABASE_MATSUM
$ dt
1.0E-06
$
*DATABASE_RBDOUT
$ dt
1.0E-06
$
*DATABASE_RCFORC
$ dt
1.0E-06
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Initial Conditions
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*INITIAL_VELOCITY_GENERATION
$ sid styp omega vx vy vz
1 2 0.0 -11124.0 0.0
$ xc yc zc nx ny nz phase
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Contacts - Sliding Interfaces
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONTACT_ERODING_SURFACE_TO_SURFACE
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
2 1 3 3
$
$ fs fd dc vc vdc penchk bt dt
$
$ sfs sfm sst mst sfst sfmt fsf vsf
$
$ isym erosop iadj
1 1
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Parts and Materials
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*PART
$ pid sid mid eosid hgid grav adpopt
projectile
1 1 1
energy absorbing block
2 2 2
$
$
*MAT_RIGID
$ mid ro e pr n couple m alias
1 7.733E-04 2.90E+07 0.30
$ cmo con1 con2
$lco or a1 a2 a3 v1 v2 v3
$
*MAT_PIECEWISE_LINEAR_PLASTICITY
$
$ mid ro e pr sigy etan eppf tdel
2 3.00E-04 1.00E+07 0.20 20000.0 1.00E+05 0.150
$
$ c p lcss lcsr
$
$ Plastic stress/strain curve
$
$
*SECTION_SOLID
$ sid elform
1 0
2 0
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Nodes and Elements
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*END
