Pipe

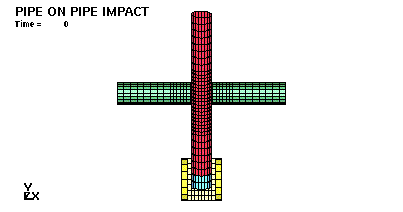

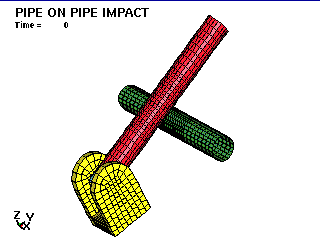

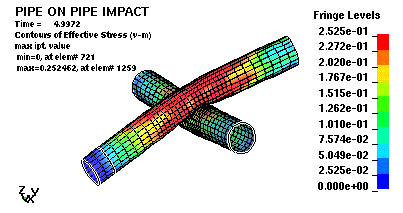

Problem Description: A pipe consisting of an elastoplastic and a rigid part is given an initial angular velocity. It crashes into another elastoplastic pipe and both are locally crushed.
https://www.dynaexamples.com/introduction/intro-by-j.-reid/pipe
https://www.dynaexamples.com/@@site-logo/LS-DYNA-Examples-Logo480x80.png
Pipe
Problem Description: A pipe consisting of an elastoplastic and a rigid part is given an initial angular velocity. It crashes into another elastoplastic pipe and both are locally crushed.
*CONTACT_AUTOMATIC_SINGLE_SURFACE *CONTACT_FORCE_TRANSDUCER_PENALTY *CONTROL_ENERGY *CONTROL_OUTPUT *CONTROL_SHELL *CONTROL_TERMINATION *DATABASE_BINARY_D3PLOT *DATABASE_BINARY_D3THDT *DATABASE_EXTENT_BINARY *DATABASE_GLSTAT *DATABASE_JNTFORC *DATABASE_MATSUM *DATABASE_RBDOUT *DATABASE_RCFORC *ELEMENT_SHELL *ELEMENT_SOLID *END *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_PLASTIC_KINEMATIC *MAT_RIGID *NODE *PART *SECTION_SHELL *SECTION_SOLID *SET_PART_LIST *TITLE
*KEYWORD
*TITLE
Pipe on Pipe Impact
$
$ J.D. Reid 7/13/00 - original model from Brian Coon 3/25/00
$
$ Units: mm, kg, ms, kN, GPa, kN-mm
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Adaptivity
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Joints
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Control Ouput
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONTROL_TERMINATION
$ endtim endcyc dtmin endeng endmas
20.0
$
*CONTROL_ENERGY
$ hgen rwen slnten rylen
2 2 2
$
*CONTROL_OUTPUT
$ npopt neecho nrefup iaccop opifs ipnint ikedit
1 3
$
*CONTROL_SHELL
$ wrpang itrist irnxx istupd theory bwc miter
1
$
$
*DATABASE_BINARY_D3PLOT
$ dt lcdt
1.00
$
*DATABASE_EXTENT_BINARY
$ neiph neips maxint strflg sigflg epsflg rltflg engflg
$ cmpflg ieverp beamip
1
$
*DATABASE_BINARY_D3THDT
$ dt lcdt
999999
$
$
*DATABASE_GLSTAT
$ dt
0.10
$
*DATABASE_JNTFORC
$ dt
0.10
$
*DATABASE_MATSUM
$ dt
0.10
$
*DATABASE_RBDOUT
$ dt
0.10
$
*DATABASE_RCFORC
$ dt
0.10
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Contacts - Sliding Interfaces
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$ Force Transducer - contact forces on deformable pipe: part 1
$
*CONTACT_FORCE_TRANSDUCER_PENALTY
$ ssid msid sstyp mstyp
1 3
$
*CONTACT_AUTOMATIC_SINGLE_SURFACE
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
3 2
$
$ fs fd dc vc vdc penchk bt dt
0.30 0.30
$
$ sfs sfm sst mst sfst sfmt fsf vsf
$
$
*SET_PART_LIST
$ psid
3
$ pid1 pid2 pid3 pid4 pid5 pid6 pid7 pid8
1 3
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Initial Conditions
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*INITIAL_VELOCITY_GENERATION
$ sid ntyp omega vx vy vz
5 1 -0.082
$
$ xc yc zc nx ny nz phase
-78.50 -610.13 5.69 1.0 0.0 0.0 0
$
$
*SET_PART_LIST
$ psid
5
$ pid1 pid2 pid3 pid4 pid5 pid6 pid7 pid8
1 2
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Pipe Parts and Materials
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*PART
$ pid sid mid eosid hgid grav adpopt
Deformable-Pipe
1 1 1
Pipe-End
2 2 2
Rigid-Pipe
3 2 1
$
$
$$$$ Materials
$
*MAT_PLASTIC_KINEMATIC
$ mid ro e pr sigy etan beta
1 7.86e-6 200.0 0.30 0.250 0.00689
$
$ src srp fs
$
$
*MAT_RIGID
$ mid ro e pr da db k
2 7.86e-6 200.0 0.30
$ cmo con1 con2
$ lco a2 a3 v1 v2 v3
$
$
$$$$ Sections
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
1 2 5
$
$ t1 t2 t3 t4 nloc
11.0 11.0 11.0 11.0
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
2 2 3
$
11.0 11.0 11.0 11.0
$
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Bracket Parts and Materials
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*PART
$ pid sid mid eosid hgid grav adpopt
Bracket
4 4 4
$
$
*MAT_RIGID
$ mid ro e pr da db k
4 7.86e-6 200.0 0.30
$ cmo con1 con2
1 7 7
$ lco a2 a3 v1 v2 v3
$
$
*SECTION_SOLID
$ sid elform
4
$
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Nodes and Elements
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*END
