Misc

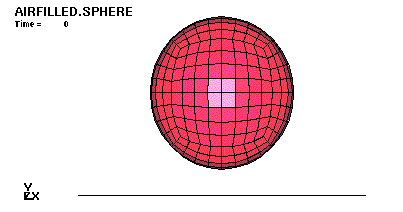

Ball
A rubber sphere is modeled with shell elements and Mooney-Rivlin material. It is pressurized using *AIRBAG_SIMPLE_PRESSURE_VOLUME_1 command and afterwards dropped against a rigid plate.

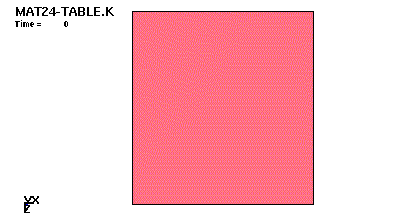

Mat24 Table
This example shows the usage of material 24. By *MAT_PIECEWISE_LINEAR_PLASTICITY keyword an elasto-plastic material with an arbitrary stress versus strain curve and arbitrary strain rate dependency can be defined.

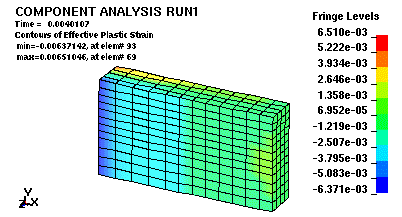

Component I
In this example it is shown how to define an interface for linking calculations. Keyword file component1.k describes the first analysis of a structure. A detail of this will be analyzed in component2.k. Interface data will be stored in the file specified by z=isfl on the execution command line.

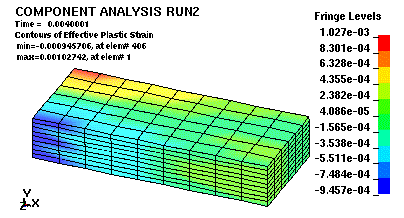

Component II
In this example it is shown how to define an interface for linking calculations. A detail of the structure described in component1.k will be analyzed in component2.k. Interface data will be read from the file specified by l=isfl on the execution command line.

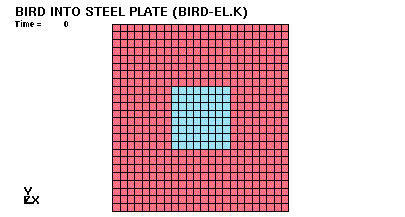

Bird ALE
This is a small idealized model of a bird striking a steel plate. Arbitrary Eulerian Lagrangian formulation with 1st order advection is used.

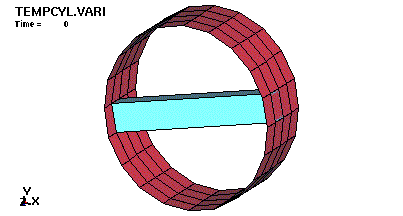

Thermal
This example shows the use of *LOAD_THERMAL_VARIABLE keyword in transient analysis to thermally preload a structure.
