Contact Pipes I

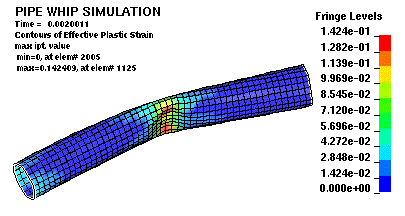

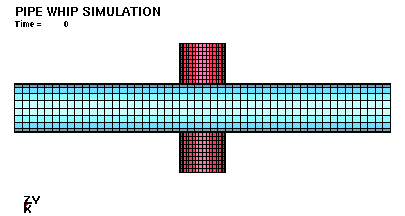

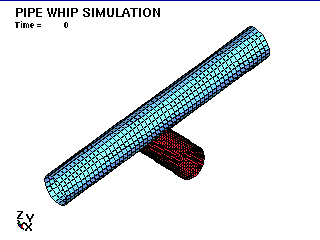

Two pipes consisting of plastic material are modeled. The upper one is given an initial angular velocity and crushes into the stiffer lower one. Single surface contact is employed. See next example for usage of adaptivity.
https://www.dynaexamples.com/introduction/intro-by-a.-tabiei/contact/contact-pipes-i
https://www.dynaexamples.com/@@site-logo/LS-DYNA-Examples-Logo480x80.png
Contact Pipes I
Two pipes consisting of plastic material are modeled. The upper one is given an initial angular velocity and crushes into the stiffer lower one. Single surface contact is employed. See next example for usage of adaptivity.
*BOUNDARY_SPC_NODE *CONTACT_SINGLE_SURFACE *CONTROL_CONTACT *CONTROL_ENERGY *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3DUMP *DATABASE_BINARY_D3PLOT *DATABASE_ELOUT *DATABASE_GLSTAT *DATABASE_MATSUM *DATABASE_NODOUT *DATABASE_RCFORC *ELEMENT_SHELL *END *INITIAL_VELOCITY_GENERATION *KEYWORD *MAT_PLASTIC_KINEMATIC *NODE *PART *SECTION_SHELL *SET_PART *TITLE
*KEYWORD
*TITLE
pipe whip simulation
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ mm, ton, s, N
$ stationary pipe (material 1), Steel
$ rotation pipe (materia 2), Alum.
$ A. Tabiei, 3-1-98
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*CONTROL_TERMINATION
$ ENDTIM
0.002E+00
*CONTROL_TIMESTEP
$ DTINIT SCFT
0.000 0.900
*CONTROL_CONTACT
$ SLSFAC RWPNAL ISLCHK SHLTHK
0.100 2 2
$ USRSTR USRFAC NSBCS INTERM
*CONTROL_ENERGY
$ HGEN RWEN SLNTEN RYLEN
2 1 1 1
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*DATABASE_MATSUM
0.100E-05
*DATABASE_NODOUT
0.100E-05
*DATABASE_ELOUT
0.100E-05
*DATABASE_GLSTAT
0.100E-05
*DATABASE_RCFORC
0.100E-05
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*DATABASE_BINARY_D3PLOT
$ DT/CYCL
0.0001E+00
*DATABASE_BINARY_D3DUMP
$ DT/CYCL
1.000E+05
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*PART
LOWER, stationary
$ PID SID MID
1 1 1
*PART
UPPER, rotating
$ PID SID MID
2 2 2
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*MAT_Plastic_kinematic
$ MID RO E PR SIGY ETAN BETA
1 7.890E-09 2.100E+05 3.000E-01 4.400E+02 1.700E+03 1.000E+00
$ SRC SRP FS
*MAT_Plastic_kinematic
$ MID RO E PR SIGY ETAN BETA
2 2.730E-09 7.2408E+4 3.000E-01 9.500E+01 7.2408E+3 0.000E+00
$ SRC SRP FS
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*SECTION_SHELL
$ SID ELFORM SHRF NIP
1 2 0.000E+00 3.0
$ T1 T2 T3 T4
5.000E+00 5.000E+00 5.000E+00 5.000E+00
*SECTION_SHELL
$ SID ELFORM SHRF NIP
2 2 0.000E+00 3.0
$ T1 T2 T3 T4
5.000E+00 5.000E+00 5.000E+00 5.000E+00
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*INITIAL_VELOCITY_GENERATION
$ ID STYP OMEGA
2 2 100.0
$ XC YC ZC NX NY NZ PHASE
635.0 -635.0 168.275 -1 0 0
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*CONTACT_single_surface
0
0.0000000 0.0000000 0.0000000 0.0000000 0.0000000 0 0.0000000 1.000E+20
1.0000000 1.0000000 0.0000000 0.0000000 1.0000000 1.0000000 1.0000000 1.0000000
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*set_part
5
2
*set_part
4
1
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*NODE
$
*ELEMENT_SHELL
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*BOUNDARY_SPC_NODE
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*END
