Rigidwall
Impacts on rigid walls
Forces

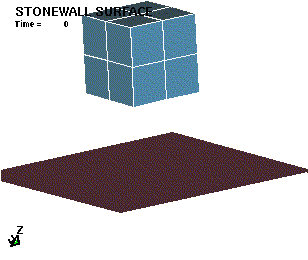

A cube impacts and rebounds from a rigid plate ( "Stonewall"). The plate is modeled with shell elements for viewing in LS-TAURUS.
Moving

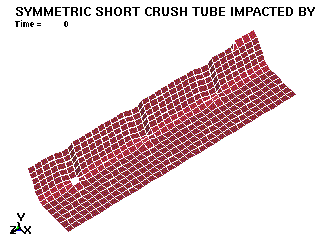

A tube is crushed using a planar, moving rigid wall.
Planar
A rotating shell element strikes and rebounds from a rigid wall surface. The plate is modeled with shell elements for viewing in LS-TAURUS. This does not affect the calculation.
Sphere
A " Stonewall" - sphere impacts an elastic plate. (The sphere will not be shown in LSTAURUS.)
