Spring

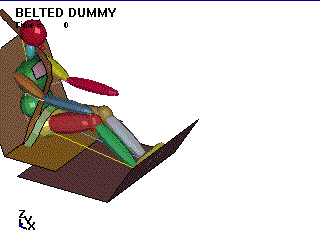

This is a simulation of the interaction between a dummy and seating system. The dummy has an initial velocity, base vehicle acceleration, and decelerated base.
*MAT_SPRING Belted Dummy with Springs LS-DYNA Manual Section: *MAT_SPRING Additional Sections: *CONSTRAINED_EXTRA_NODES_SET *CONSTRAINED_JOINT_SPHERICAL *CONTACT_SURFACE_TO_SURFACE *DEFINE_SD_ORIENTATION *ELEMENT_DISCRETE *LOAD_BODY_Z *MAT_DAMPER_VISCOUS *PART_INERTIA Example: Belted Dummy with Springs Filename: mat_spring.belted-dummy.k Description: This is a simulation of the interaction between a dummy and seating system. The dummy has an initial velocity, base vehicle acceleration, and decelerated base. Model: The dummy consists of 15 ellipsoidal rigid bodies connected through cylindrical joints, springs and dampers. The base of the seat belts and the seat decelerates backwards relative to the dummy. Input: The dummy consists of rigid bodies 1 through 15. Materials 16 through 20 define the seat and material 21 and 22 define the seat belt. The rigid bodies are constrained with respect to each of her with spherical joints (*C ONSTRAINED_JOINT_SPHERICAL). Discrete springs and dampers between the rigid body provide the relative stiffness and viscosity. The initial velocity of all nodes is 14.8 units, while the acceleration of the seat and belt ends follow an acceleration curve in the opposite direction. Results: LS-DYNA predicts that the dummy slides under the seat belts. Reference: Stillman, D. W.
*BOUNDARY_PRESCRIBED_MOTION_SET *CONSTRAINED_EXTRA_NODES_SET *CONSTRAINED_JOINT_SPHERICAL *CONTACT_SURFACE_TO_SURFACE *CONTROL_CONTACT *CONTROL_TERMINATION *CONTROL_TIMESTEP *DATABASE_BINARY_D3PLOT *DEFINE_CURVE *DEFINE_SD_ORIENTATION *ELEMENT_DISCRETE *ELEMENT_SHELL *END *INITIAL_VELOCITY *KEYWORD *LOAD_BODY_Z *MAT_DAMPER_NONLINEAR_VISCOUS *MAT_DAMPER_VISCOUS *MAT_ELASTIC *MAT_RIGID *MAT_SPRING_NONLINEAR_ELASTIC *NODE *PART *PART_INERTIA *SECTION_DISCRETE *SECTION_SHELL *SET_NODE_LIST *SET_SEGMENT *TITLE
*KEYWORD
*TITLE
Belted Dummy
$
$ LSTC Example
$
$ Last Modified: September 19, 1997
$
$ Units: kg, m, s, N, Pa, Joule
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Control Ouput
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONTROL_TERMINATION
$ endtim endcyc dtmin endneg endmas
1.200E-01
$
*CONTROL_CONTACT
$ slsfac rwpnal islchk shlthk penopt thkchg orien
2
$ usrstr usrfac nsbcs interm xpenen
$
*CONTROL_TIMESTEP
$ dtinit scft isdo tslimt dtms lctm erode ms1st
0.000E+00 8.000E-01 0 0.000E+00 0.000E+00 0 0
$
$
*DATABASE_BINARY_D3PLOT
$ dt/cycl lcdt
2.500E-03
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Initial Conditions
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$$ All nodes are given an initial velocity.
$
*INITIAL_VELOCITY
$ nsid nsidex boxid
0
$
$ vx vy vz vxr vyr vzr
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Boundary Conditions
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$$ The base of the seat decelerates backwards relative to the dummy.
$
*BOUNDARY_PRESCRIBED_MOTION_SET
$ nsid dof vad lcid sf vid
1 1 1 50 -1.00 1
$
*SET_NODE_LIST
$ sid da1 da2 da3 da4
1
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1763 1764 1765 1766 1767 1768 1769 1770
1771 1772 1773 1774 1775 1776 1777 1778
1779 1780 1781 1782 1783 1784 1785 1786
1787 1788 1789 1792 1795 1904 1906 1908
1909 1910 1997 1998 1999 2043
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
50
$ abscissa ordinate
0.00000000E+00 0.00000000E+00
4.00000019E-03 4.41500015E+01
6.00000005E-03 2.94300003E+01
9.99999978E-03 7.84800034E+01
1.35000004E-02 4.41500015E+01
1.79999992E-02 1.37300003E+02
2.34999992E-02 1.66800003E+02
3.09999995E-02 2.35399994E+02
3.40000018E-02 2.35399994E+02
3.59999985E-02 2.55100006E+02
3.99999991E-02 2.60000000E+02
4.19999994E-02 2.60000000E+02
4.45000008E-02 2.69799988E+02
4.69999984E-02 2.60000000E+02
4.89999987E-02 2.60000000E+02
5.15000001E-02 2.55100006E+02
5.40000014E-02 2.55100006E+02
7.99999982E-02 1.22599998E+02
9.00000036E-02 4.90499992E+01
9.49999988E-02 -9.81000042E+00
9.74999964E-02 -2.45300007E+01
1.03000000E-01 1.47200003E+01
1.08999997E-01 -1.47200003E+01
1.15000002E-01 -9.81000042E+00
1.19499996E-01 -4.90999985E+00
1.12499997E-01 -9.81000042E+00
1.29999995E-01 -2.45000005E+00
1.41000003E-01 -1.96200008E+01
1.49000004E-01 -2.45000005E+00
1.51999995E-01 -1.47200003E+01
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Gravity
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*LOAD_BODY_Z
$ lcid sf lciddr
51 1.00 0
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
51
$ abscissa ordinate
0.00000000E+00 9.81
1.51999995E-01 9.81
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Contacts - Sliding Interfaces
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$$$$ The segment sets associated with these contacts are located at the end
$$$$ of this file.
$
*CONTACT_SURFACE_TO_SURFACE
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
1 2 0 0
$ fs fd dc vc vdc penchk bt dt
6.200E-01
$ sfs sfm sst mst sfst sfmt fsf vsf
$
*CONTACT_SURFACE_TO_SURFACE
$ ssid msid sstyp mstyp sboxid mboxid spr mpr
3 4 0 0
$ fs fd dc vc vdc penchk bt dt
6.200E-01
$ sfs sfm sst mst sfst sfmt fsf vsf
$
*CONTACT_SURFACE_TO_SURFACE
5 6 0 0
6.200E-01
$
*CONTACT_SURFACE_TO_SURFACE
7 8 0 0
8.000E-01
$
*CONTACT_SURFACE_TO_SURFACE
9 10 0 0
1.000E+00
$
*CONTACT_SURFACE_TO_SURFACE
11 12 0 0
8.000E-01
$
*CONTACT_SURFACE_TO_SURFACE
13 14 0 0
8.800E-01
$
*CONTACT_SURFACE_TO_SURFACE
15 16 0 0
8.800E-01
$
*CONTACT_SURFACE_TO_SURFACE
17 18 0 0
1.600E-01
$
*CONTACT_SURFACE_TO_SURFACE
19 20 0 0
8.800E-01
$
*CONTACT_SURFACE_TO_SURFACE
21 22 0 0
0.000E+00
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Constraints
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*CONSTRAINED_JOINT_SPHERICAL
$ n1 n2 n3 n4 n5 rps damp
99 227 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
228 405 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
406 865 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
866 971 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
407 537 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
538 685 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
408 603 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
604 763 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
972 1097 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
1098 1497 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
1498 1645 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
973 1317 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
1318 1579 0 0 0 0 0.000E+00
*CONSTRAINED_JOINT_SPHERICAL
1580 1733 0 0 0 0 0.000E+00
$
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
1 2
$
*SET_NODE_LIST
$ sid
2
$ nid1 nid2 nid3 nid4 nid5
99 100 101 102
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
2 3
$
*SET_NODE_LIST
$ sid
3
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
227 228 229 230 231 232 233 234
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
3 4
$
*SET_NODE_LIST
$ sid
4
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
405 406 407 408 409 410 411 412
413 414 415 416 417 418 419 420
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
4 5
$
*SET_NODE_LIST
$ sid
5
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
537 538 539 540 541 542 543 544
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
5 6
$
*SET_NODE_LIST
$ sid
6
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
603 604 605 606 607 608 609 610
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
6 7
$
*SET_NODE_LIST
$ sid
7
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
685 686 687 688
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
7 8
$
*SET_NODE_LIST
$ sid
8
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
763 764 765 766
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
8 9
$
*SET_NODE_LIST
$ sid
9
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
865 866 867 868 869 870 871 872
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
9 10
$
*SET_NODE_LIST
$ sid da1 da2 da3 da4
10
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
971 972 973 974 975 976 977 978
979 980 981 982
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
10 11
$
*SET_NODE_LIST
$ sid
11
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1097 1098 1099 1100 1101 1102 1103 1104
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
11 12
$
*SET_NODE_LIST
$ sid
12
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1317 1318 1319 1320 1321 1322 1323 1324
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
12 13
$
*SET_NODE_LIST
$ sid
13
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1497 1498 1499 1500 1501 1502 1503 1504
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
13 14
*SET_NODE_LIST
$ sid
14
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1579 1580 1581 1582 1583 1584 1585 1586
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
14 15
$
*SET_NODE_LIST
$ sid
15
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1645 1646 1647 1648
$
*CONSTRAINED_EXTRA_NODES_SET
$ pid nsid
15 16
$
*SET_NODE_LIST
$ sid
16
$ nid1 nid2 nid3 nid4 nid5 nid6 nid7 nid8
1733 1734 1735 1736
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Spring Orientation Vectors and Curves
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*DEFINE_SD_ORIENTATION
$ vid iop xt yt zt nid1 nid2
1 2 0.000E+00 0.000E+00 0.000E+00 100 229
2 2 0.000E+00 0.000E+00 0.000E+00 101 230
3 2 0.000E+00 0.000E+00 0.000E+00 102 231
4 2 0.000E+00 0.000E+00 0.000E+00 232 409
5 2 0.000E+00 0.000E+00 0.000E+00 233 410
6 2 0.000E+00 0.000E+00 0.000E+00 234 411
7 2 0.000E+00 0.000E+00 0.000E+00 412 867
8 2 0.000E+00 0.000E+00 0.000E+00 413 868
9 2 0.000E+00 0.000E+00 0.000E+00 414 869
10 2 0.000E+00 0.000E+00 0.000E+00 870 974
11 2 0.000E+00 0.000E+00 0.000E+00 871 975
12 2 0.000E+00 0.000E+00 0.000E+00 872 976
13 2 0.000E+00 0.000E+00 0.000E+00 415 539
14 2 0.000E+00 0.000E+00 0.000E+00 416 540
15 2 0.000E+00 0.000E+00 0.000E+00 417 541
16 2 0.000E+00 0.000E+00 0.000E+00 542 686
17 2 0.000E+00 0.000E+00 0.000E+00 543 687
18 2 0.000E+00 0.000E+00 0.000E+00 544 688
19 2 0.000E+00 0.000E+00 0.000E+00 418 605
20 2 0.000E+00 0.000E+00 0.000E+00 419 606
21 2 0.000E+00 0.000E+00 0.000E+00 420 607
22 2 0.000E+00 0.000E+00 0.000E+00 608 764
23 2 0.000E+00 0.000E+00 0.000E+00 609 765
24 2 0.000E+00 0.000E+00 0.000E+00 610 766
25 2 0.000E+00 0.000E+00 0.000E+00 977 1099
26 2 0.000E+00 0.000E+00 0.000E+00 978 1100
27 2 0.000E+00 0.000E+00 0.000E+00 979 1101
28 2 0.000E+00 0.000E+00 0.000E+00 1102 1499
29 2 0.000E+00 0.000E+00 0.000E+00 1103 1500
30 2 0.000E+00 0.000E+00 0.000E+00 1104 1501
31 2 0.000E+00 0.000E+00 0.000E+00 1502 1646
32 2 0.000E+00 0.000E+00 0.000E+00 1503 1647
33 2 0.000E+00 0.000E+00 0.000E+00 1504 1648
34 2 0.000E+00 0.000E+00 0.000E+00 980 1319
35 2 0.000E+00 0.000E+00 0.000E+00 981 1320
36 2 0.000E+00 0.000E+00 0.000E+00 982 1321
37 2 0.000E+00 0.000E+00 0.000E+00 1322 1581
38 2 0.000E+00 0.000E+00 0.000E+00 1323 1582
39 2 0.000E+00 0.000E+00 0.000E+00 1324 1583
40 2 0.000E+00 0.000E+00 0.000E+00 1584 1734
41 2 0.000E+00 0.000E+00 0.000E+00 1585 1735
42 2 0.000E+00 0.000E+00 0.000E+00 1586 1736
$
$$$$ Define Curves
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
1
$ abscissa ordinate
-1.71000004E+00 -5.38000000E+02
-7.09999979E-01 -8.47500000E+01
-6.80000007E-01 -7.76600037E+01
-6.60000026E-01 -7.10599976E+01
-5.89999974E-01 -5.36800003E+01
-5.00000000E-01 -4.05800018E+01
-3.89999986E-01 -2.99799995E+01
-2.09999997E-02 -4.65000010E+00
0.00000000E+00 0.00000000E+00
2.09999997E-02 4.65000010E+00
3.89999986E-01 2.99799995E+01
5.00000000E-01 4.05800018E+01
5.89999974E-01 5.36800003E+01
6.60000026E-01 7.10599976E+01
6.80000007E-01 7.76600037E+01
7.09999979E-01 8.47500000E+01
1.71000004E+00 5.38000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
2
$ abscissa ordinate
-1.71000004E+00 -5.38000000E+02
-7.09999979E-01 -8.47500000E+01
-6.80000007E-01 -7.76600037E+01
-6.60000026E-01 -7.10599976E+01
-5.89999974E-01 -5.36800003E+01
-5.00000000E-01 -4.05800018E+01
-3.89999986E-01 -2.99799995E+01
-2.09999997E-02 -4.65000010E+00
0.00000000E+00 0.00000000E+00
2.09999997E-02 4.65000010E+00
3.89999986E-01 2.99799995E+01
5.00000000E-01 4.05800018E+01
5.89999974E-01 5.36800003E+01
6.60000026E-01 7.10599976E+01
6.80000007E-01 7.76600037E+01
7.09999979E-01 8.47500000E+01
1.71000004E+00 5.38000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
3
$ abscissa ordinate
-1.00000000E+00 -1.03000000E+02
-1.74999997E-01 -2.80000000E+01
1.74999997E-01 2.80000000E+01
1.00000000E+00 1.03000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
4
$ abscissa ordinate
-1.71000004E+00 -5.38000000E+02
-7.09999979E-01 -8.47500000E+01
-6.80000007E-01 -7.76600037E+01
-6.60000026E-01 -7.10599976E+01
-5.89999974E-01 -5.36800003E+01
-5.00000000E-01 -4.05800018E+01
-3.89999986E-01 -2.99799995E+01
-2.09999997E-02 -4.65000010E+00
0.00000000E+00 0.00000000E+00
2.09999997E-02 4.65000010E+00
3.89999986E-01 2.99799995E+01
5.00000000E-01 4.05800018E+01
5.89999974E-01 5.36800003E+01
6.60000026E-01 7.10599976E+01
6.80000007E-01 7.76600037E+01
7.09999979E-01 8.47500000E+01
1.71000004E+00 5.38000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
5
$ abscissa ordinate
-2.18700004E+00 -5.38000000E+02
-7.09999979E-01 -8.47500000E+01
-6.80000007E-01 -7.76600037E+01
-6.60000026E-01 -7.10599976E+01
-5.89999974E-01 -5.36800003E+01
-5.00000000E-01 -4.05800018E+01
-3.89999986E-01 -2.99799995E+01
-2.09999997E-02 -4.65000010E+00
0.00000000E+00 0.00000000E+00
2.09999997E-02 4.65000010E+00
3.89999986E-01 2.99799995E+01
5.00000000E-01 4.05800018E+01
5.89999974E-01 5.36800003E+01
6.60000026E-01 7.10599976E+01
6.80000007E-01 7.76600037E+01
7.09999979E-01 8.47500000E+01
1.23300004E+00 5.38000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
6
$ abscissa ordinate
-1.00000000E+00 -1.03000000E+02
-1.74999997E-01 -2.80000000E+01
1.74999997E-01 2.80000000E+01
1.00000000E+00 1.03000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
7
$ abscissa ordinate
-1.00000000E+00 -2.97800000E+03
0.00000000E+00 0.00000000E+00
1.00000000E+00 2.97800000E+03
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
8
$ abscissa ordinate
-1.00000000E+00 -2.97800000E+03
0.00000000E+00 0.00000000E+00
1.00000000E+00 2.97800000E+03
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
9
$ abscissa ordinate
-1.00000000E+00 -1.26000000E+02
-1.74999997E-01 -4.00000000E+01
1.74999997E-01 4.00000000E+01
1.00000000E+00 1.26000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
10
$ abscissa ordinate
-1.00000000E+00 -2.97800000E+03
0.00000000E+00 0.00000000E+00
1.00000000E+00 2.97800000E+03
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
11
$ abscissa ordinate
-1.00000000E+00 -2.97800000E+03
0.00000000E+00 0.00000000E+00
1.00000000E+00 2.97800000E+03
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
12
$ abscissa ordinate
-1.00000000E+00 -1.26000000E+02
-1.74999997E-01 -4.00000000E+01
1.74999997E-01 4.00000000E+01
1.00000000E+00 1.26000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
13
$ abscissa ordinate
-1.05999994E+00 -5.22000000E+02
-5.99999987E-02 -2.20000000E+01
0.00000000E+00 0.00000000E+00
2.50000000E+00 2.60000000E+01
3.50000000E+00 5.26000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
14
$ abscissa ordinate
-2.85400009E+00 -5.00000000E+02
-2.50000000E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
1.29999995E+00 0.00000000E+00
2.94600010E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
15
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
16
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
17
$ abscissa ordinate
-2.52999997E+00 -5.44000000E+02
-2.00000000E+00 -4.40000000E+01
-1.79999995E+00 -1.10000000E+01
-1.57000005E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
1.47000003E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
18
$ abscissa ordinate
-1.88000000E+00 -5.00000000E+02
-8.79999995E-01 0.00000000E+00
8.79999995E-01 0.00000000E+00
1.88000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
19
$ abscissa ordinate
-3.50000000E+00 -5.26000000E+02
-2.50000000E+00 -2.60000000E+01
0.00000000E+00 0.00000000E+00
5.99999987E-02 2.20000000E+01
1.05999994E+00 5.22000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
20
$ abscissa ordinate
-2.85400009E+00 -5.00000000E+02
-2.50000000E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
1.29999995E+00 0.00000000E+00
2.94600010E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
21
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
22
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
23
$ abscissa ordinate
-2.52999997E+00 -5.44000000E+02
-2.00000000E+00 -4.40000000E+01
-1.79999995E+00 -1.10000000E+01
-1.57000005E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
1.47000003E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
24
$ abscissa ordinate
-1.88000000E+00 -5.00000000E+02
-8.79999995E-01 0.00000000E+00
8.79999995E-01 0.00000000E+00
1.88000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
25
$ abscissa ordinate
-2.00000000E+00 -5.00000000E+02
-1.00000000E+00 0.00000000E+00
1.00000000E+00 0.00000000E+00
2.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
26
$ abscissa ordinate
-1.44500005E+00 -5.52000000E+02
-6.00000024E-01 -5.20000000E+01
0.00000000E+00 0.00000000E+00
2.70000011E-01 2.20000000E+01
3.70000005E-01 4.90000000E+01
1.51999998E+00 5.49000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
27
$ abscissa ordinate
-1.13999999E+00 -5.32000000E+02
-1.40000001E-01 -3.20000000E+01
0.00000000E+00 0.00000000E+00
6.49999976E-01 4.60000000E+01
1.64999998E+00 5.46000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
28
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
29
$ abscissa ordinate
-1.92700005E+00 -5.00000000E+02
-1.57000005E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
2.59999990E-01 0.00000000E+00
7.09999979E-01 3.10000000E+01
8.89999986E-01 8.10000000E+01
2.52999997E+00 5.81000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
30
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
31
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
32
$ abscissa ordinate
-1.79999995E+00 -5.41000000E+02
-8.00000012E-01 -4.10000000E+01
-6.99999988E-01 0.00000000E+00
0.00000000E+00 0.00000000E+00
8.00000012E-01 0.00000000E+00
8.99999976E-01 3.70000000E+01
1.89999998E+00 5.37000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
33
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
34
$ abscissa ordinate
-2.00000000E+00 -5.00000000E+02
-1.00000000E+00 0.00000000E+00
1.00000000E+00 0.00000000E+00
2.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
35
$ abscissa ordinate
-1.44500005E+00 -5.52000000E+02
-6.00000024E-01 -5.20000000E+01
0.00000000E+00 0.00000000E+00
2.70000011E-01 2.20000000E+01
3.70000005E-01 4.90000000E+01
1.51999998E+00 5.49000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
36
$ abscissa ordinate
-1.64999998E+00 -5.46000000E+02
-6.49999976E-01 -4.60000000E+01
0.00000000E+00 0.00000000E+00
1.40000001E-01 3.20000000E+01
1.13999999E+00 5.32000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
37
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
38
$ abscissa ordinate
-1.92700005E+00 -5.00000000E+02
-1.57000005E+00 0.00000000E+00
0.00000000E+00 0.00000000E+00
2.59999990E-01 0.00000000E+00
7.09999979E-01 3.10000000E+01
8.89999986E-01 8.10000000E+01
2.52999997E+00 5.81000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
39
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
40
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
41
$ abscissa ordinate
-1.79999995E+00 -5.41000000E+02
-8.00000012E-01 -4.10000000E+01
-6.99999988E-01 0.00000000E+00
0.00000000E+00 0.00000000E+00
8.00000012E-01 0.00000000E+00
8.99999976E-01 3.70000000E+01
1.89999998E+00 5.37000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
42
$ abscissa ordinate
-1.00000000E+00 -5.00000000E+02
1.00000000E+00 5.00000000E+02
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
43
$ abscissa ordinate
-1.00000000E+03 -2.00000000E+00
-5.00000000E-01 -2.00000000E+00
5.00000000E-01 2.00000000E+00
1.00000000E+03 2.00000000E+00
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
44
$ abscissa ordinate
-1.00000000E+03 -1.13999996E+01
-5.00000000E-01 -1.13999996E+01
5.00000000E-01 1.13999996E+01
1.00000000E+03 1.13999996E+01
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
45
$ abscissa ordinate
-1.00000000E+03 -3.20000005E+00
-5.00000000E-01 -3.20000005E+00
5.00000000E-01 3.20000005E+00
1.00000000E+03 3.20000005E+00
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
46
$ abscissa ordinate
-1.00000000E+03 -1.40000000E+01
-5.00000000E-01 -1.40000000E+01
5.00000000E-01 1.40000000E+01
1.00000000E+03 1.40000000E+01
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
47
$ abscissa ordinate
-1.00000000E+03 -4.50000000E+01
-5.00000000E-01 -4.50000000E+01
5.00000000E-01 4.50000000E+01
1.00000000E+03 4.50000000E+01
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
48
$ abscissa ordinate
-1.00000000E+03 -1.10000000E+01
-5.00000000E-01 -1.10000000E+01
5.00000000E-01 1.10000000E+01
1.00000000E+03 1.10000000E+01
$
*DEFINE_CURVE
$ lcid sidr scla sclo offa offo
49
$ abscissa ordinate
-1.00000000E+03 -1.00000000E+00
-5.00000000E-01 -1.00000000E+00
5.00000000E-01 1.00000000E+00
1.00000000E+03 1.00000000E+00
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Parts and Materials
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
*PART_INERTIA
material type # (rigid)
$ pid sid mid eosid hgid adpopt
1 1 1 0
$ xc yc zc tm ircs
-1.739E-01 0.000E+00 6.523E-01 4.535E+00
$ ixx ixy ixz iyy iyz izz
1.590E-02 0.000E+00 1.424E-04 2.400E-02 0.000E+00 2.210E-02
$ vtx vty vtz vrx vry vrz
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
$
*PART_INERTIA
material type # (rigid)
2 2 2 0
-1.637E-01 0.000E+00 5.117E-01 1.480E+00
1.000E-02 0.000E+00 0.000E+00 1.000E-02 0.000E+00 1.000E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
3 3 3 0
-1.631E-01 0.000E+00 3.024E-01 1.608E+01
2.838E-01 0.000E+00 3.948E-02 2.319E-01 0.000E+00 2.152E-01
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
4 4 4 0
-7.182E-02 1.875E-01 3.158E-01 2.085E+00
1.136E-02 0.000E+00 6.468E-04 1.130E-02 0.000E+00 1.127E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
5 5 5 0
-7.182E-02-1.875E-01 3.158E-01 2.085E+00
1.136E-02 0.000E+00 6.468E-04 1.130E-02 0.000E+00 1.127E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
6 6 6 0
1.858E-02 1.875E-01 2.571E-01 2.318E+00
3.370E-02 0.000E+00 1.196E-06 3.370E-02 0.000E+00 3.390E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
7 7 7 0
1.858E-02-1.875E-01 2.571E-01 2.318E+00
3.370E-02 0.000E+00 1.196E-06 3.370E-02 0.000E+00 3.390E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
8 8 8 0
-1.141E-01 0.000E+00 1.172E-01 2.667E+00
1.000E-02 0.000E+00 0.000E+00 1.000E-02 0.000E+00 1.000E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
9 9 9 0
-1.996E-02 0.000E+00 3.636E-02 2.017E+01
2.091E-01 0.000E+00 2.939E-02 8.230E-02 0.000E+00 1.790E-01
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
10 10 10 0
2.407E-01 7.999E-02 7.451E-02 6.220E+00
6.868E-02 0.000E+00 1.596E-02 6.740E-02 0.000E+00 1.702E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
11 11 11 0
2.407E-01-7.999E-02 7.451E-02 6.220E+00
6.868E-02 0.000E+00 1.596E-02 6.740E-02 0.000E+00 1.702E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
12 12 12 0
5.419E-01 7.999E-02 2.776E-02 3.283E+00
7.606E-02 0.000E+00 3.134E-02 7.620E-02 0.000E+00 5.291E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
13 13 13 0
5.419E-01-7.999E-02 2.776E-02 3.283E+00
7.606E-02 0.000E+00 3.134E-02 7.620E-02 0.000E+00 5.291E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
14 14 14 0
7.873E-01 7.999E-02-1.021E-01 1.250E+00
1.000E-02 0.000E+00 0.000E+00 1.000E-02 0.000E+00 1.000E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*PART_INERTIA
material type # (rigid)
15 15 15 0
7.873E-01-7.999E-02-1.021E-01 1.250E+00
1.000E-02 0.000E+00 0.000E+00 1.000E-02 0.000E+00 1.000E-02
1.480E+01 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
$
$
*PART
$ pid sid mid eosid hgid adpopt
material type # 1 (elastic)
16 16 16 0
material type # 1 (elastic)
17 17 17 0
material type # 1 (elastic)
18 18 18 0
material type # 1 (elastic)
19 19 19 0
material type # 1 (elastic)
20 20 20 0
part-21
21 21 21 0
part-22
22 22 22 0
spring 101
101 101 101
spring 102
102 102 102
spring 103
103 103 103
spring 104
104 104 104
spring 105
105 105 105
spring 106
106 106 106
spring 107
107 107 107
spring 108
108 108 108
spring 109
109 109 109
spring 110
110 110 110
spring 111
111 111 111
spring 112
112 112 112
spring 113
113 113 113
spring 114
114 114 114
spring 115
115 115 115
spring 116
116 116 116
spring 117
117 117 117
spring 118
118 118 118
spring 119
119 119 119
spring 120
120 120 120
spring 121
121 121 121
spring 122
122 122 122
spring 123
123 123 123
spring 124
124 124 124
spring 125
125 125 125
spring 126
126 126 126
spring 127
127 127 127
spring 128
128 128 128
spring 129
129 129 129
spring 130
130 130 130
spring 131
131 131 131
spring 132
132 132 132
spring 133
133 133 133
spring 134
134 134 134
spring 135
135 135 135
spring 136
136 136 136
spring 137
137 137 137
spring 138
138 138 138
spring 139
139 139 139
spring 140
140 140 140
spring 141
141 141 141
spring 142
142 142 142
spring 143
143 143 143
spring 144
144 144 144
spring 145
145 145 145
spring 146
146 146 146
spring 147
147 147 147
spring 148
148 148 148
spring 149
149 149 149
spring 150
150 150 150
spring 151
151 151 151
spring 152
152 152 152
spring 153
153 153 153
spring 154
154 154 154
spring 155
155 155 155
spring 156
156 156 156
spring 157
157 157 157
spring 158
158 158 158
spring 159
159 159 159
spring 160
160 160 160
spring 161
161 161 161
spring 162
162 162 162
spring 163
163 163 163
spring 164
164 164 164
spring 165
165 165 165
spring 166
166 166 166
spring 167
167 167 167
spring 168
168 168 168
spring 169
169 169 169
spring 170
170 170 170
spring 171
171 171 171
spring 172
172 172 172
spring 173
173 173 173
spring 174
174 174 174
spring 175
175 175 175
spring 176
176 176 176
spring 177
177 177 177
spring 178
178 178 178
spring 179
179 179 179
spring 180
180 180 180
spring 181
181 181 181
spring 182
182 182 182
spring 183
183 183 183
spring 184
184 184 184
spring 185
185 185 185
spring 186
186 186 186
spring 187
187 187 187
spring 188
188 188 188
spring 189
189 189 189
spring 190
190 190 190
spring 191
191 191 191
spring 192
192 192 192
spring 193
193 193 193
spring 194
194 194 194
spring 195
195 195 195
spring 196
196 196 196
spring 197
197 197 197
spring 198
198 198 198
spring 199
199 199 199
spring 200
200 200 200
spring 201
201 201 201
spring 202
202 202 202
spring 203
203 203 203
spring 204
204 204 204
spring 205
205 205 205
spring 206
206 206 206
spring 207
207 207 207
spring 208
208 208 208
$
$$$$$$$$ Materials
$
$
$$$$ Rigid Materials
$
*MAT_RIGID
$ mid ro e pr n couple m alias
1 4.064E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
2 4.190E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
3 4.760E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
4 2.920E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
5 2.920E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
6 2.290E+03 4.000E+06 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
7 2.290E+03 4.000E+06 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
8 1.350E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
9 8.170E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
10 2.680E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
11 2.680E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
12 2.580E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
13 2.580E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
14 2.000E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
*MAT_RIGID
$ mid ro e pr n couple m alias
15 2.000E+03 4.000E+08 3.000E-01 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
$
$
$$$$ Elastic Materials
$
*MAT_ELASTIC
$ mid ro e pr da db k
16 4.646E+03 4.000E+08 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
17 4.646E+03 4.000E+08 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
18 4.646E+03 4.000E+09 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
19 4.646E+03 4.000E+08 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
20 2.000E+03 4.100E+08 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
21 2.000E+03 4.100E+08 3.000E-01
*MAT_ELASTIC
$ mid ro e pr da db k
22 4.000E+03 2.000E+08 3.000E-01
$
$
$$$$ Nonlinear Elastic Spring Materials
$
*MAT_SPRING_NONLINEAR_ELASTIC
101 1
*MAT_SPRING_NONLINEAR_ELASTIC
102 2
*MAT_SPRING_NONLINEAR_ELASTIC
103 3
*MAT_SPRING_NONLINEAR_ELASTIC
104 4
*MAT_SPRING_NONLINEAR_ELASTIC
105 5
*MAT_SPRING_NONLINEAR_ELASTIC
106 6
*MAT_SPRING_NONLINEAR_ELASTIC
107 7
*MAT_SPRING_NONLINEAR_ELASTIC
108 8
*MAT_SPRING_NONLINEAR_ELASTIC
109 9
*MAT_SPRING_NONLINEAR_ELASTIC
110 10
*MAT_SPRING_NONLINEAR_ELASTIC
111 11
*MAT_SPRING_NONLINEAR_ELASTIC
112 12
*MAT_SPRING_NONLINEAR_ELASTIC
113 13
*MAT_SPRING_NONLINEAR_ELASTIC
114 14
*MAT_SPRING_NONLINEAR_ELASTIC
115 15
*MAT_SPRING_NONLINEAR_ELASTIC
116 16
*MAT_SPRING_NONLINEAR_ELASTIC
117 17
*MAT_SPRING_NONLINEAR_ELASTIC
118 18
*MAT_SPRING_NONLINEAR_ELASTIC
119 19
*MAT_SPRING_NONLINEAR_ELASTIC
120 20
*MAT_SPRING_NONLINEAR_ELASTIC
121 21
*MAT_SPRING_NONLINEAR_ELASTIC
122 22
*MAT_SPRING_NONLINEAR_ELASTIC
123 23
*MAT_SPRING_NONLINEAR_ELASTIC
124 24
*MAT_SPRING_NONLINEAR_ELASTIC
125 25
*MAT_SPRING_NONLINEAR_ELASTIC
126 26
*MAT_SPRING_NONLINEAR_ELASTIC
127 27
*MAT_SPRING_NONLINEAR_ELASTIC
128 28
*MAT_SPRING_NONLINEAR_ELASTIC
129 29
*MAT_SPRING_NONLINEAR_ELASTIC
130 30
*MAT_SPRING_NONLINEAR_ELASTIC
131 31
*MAT_SPRING_NONLINEAR_ELASTIC
132 32
*MAT_SPRING_NONLINEAR_ELASTIC
133 33
*MAT_SPRING_NONLINEAR_ELASTIC
134 34
*MAT_SPRING_NONLINEAR_ELASTIC
135 35
*MAT_SPRING_NONLINEAR_ELASTIC
136 36
*MAT_SPRING_NONLINEAR_ELASTIC
137 37
*MAT_SPRING_NONLINEAR_ELASTIC
138 38
*MAT_SPRING_NONLINEAR_ELASTIC
139 39
*MAT_SPRING_NONLINEAR_ELASTIC
140 40
*MAT_SPRING_NONLINEAR_ELASTIC
141 41
*MAT_SPRING_NONLINEAR_ELASTIC
142 42
$
$
$$$$ Viscous Damper Materials
$
*MAT_DAMPER_VISCOUS
143 2.300E+00
*MAT_DAMPER_VISCOUS
144 2.300E+00
*MAT_DAMPER_VISCOUS
145 2.300E+00
*MAT_DAMPER_VISCOUS
146 2.300E+00
*MAT_DAMPER_VISCOUS
147 2.300E+00
*MAT_DAMPER_VISCOUS
148 2.300E+00
*MAT_DAMPER_VISCOUS
149 3.050E+01
*MAT_DAMPER_VISCOUS
150 3.050E+01
*MAT_DAMPER_VISCOUS
151 3.050E+01
*MAT_DAMPER_VISCOUS
152 3.050E+01
*MAT_DAMPER_VISCOUS
153 3.050E+01
*MAT_DAMPER_VISCOUS
154 3.050E+01
*MAT_DAMPER_VISCOUS
155 4.000E+00
*MAT_DAMPER_VISCOUS
156 2.000E+00
*MAT_DAMPER_VISCOUS
157 4.000E+00
*MAT_DAMPER_VISCOUS
158 4.000E+00
*MAT_DAMPER_VISCOUS
159 2.000E+00
*MAT_DAMPER_VISCOUS
160 2.000E+00
*MAT_DAMPER_VISCOUS
161 4.000E+00
*MAT_DAMPER_VISCOUS
162 2.000E+00
*MAT_DAMPER_VISCOUS
163 4.000E+00
*MAT_DAMPER_VISCOUS
164 4.000E+00
*MAT_DAMPER_VISCOUS
165 2.000E+00
*MAT_DAMPER_VISCOUS
166 2.000E+00
*MAT_DAMPER_VISCOUS
167 6.000E+00
*MAT_DAMPER_VISCOUS
168 6.000E+00
*MAT_DAMPER_VISCOUS
169 5.000E+00
*MAT_DAMPER_VISCOUS
170 7.500E+00
*MAT_DAMPER_VISCOUS
171 5.000E+00
*MAT_DAMPER_VISCOUS
172 4.000E+00
*MAT_DAMPER_VISCOUS
173 1.000E+00
*MAT_DAMPER_VISCOUS
174 1.000E+00
*MAT_DAMPER_VISCOUS
175 1.000E+00
*MAT_DAMPER_VISCOUS
176 6.000E+00
*MAT_DAMPER_VISCOUS
177 6.000E+00
*MAT_DAMPER_VISCOUS
178 5.000E+00
*MAT_DAMPER_VISCOUS
179 7.500E+00
*MAT_DAMPER_VISCOUS
180 5.000E+00
*MAT_DAMPER_VISCOUS
181 4.000E+00
*MAT_DAMPER_VISCOUS
182 1.000E+00
*MAT_DAMPER_VISCOUS
183 1.000E+00
*MAT_DAMPER_VISCOUS
184 1.000E+00
$
$
$$$$ Nonlinear Viscous Damper Materials
$
*MAT_DAMPER_NONLINEAR_VISCOUS
185 43
*MAT_DAMPER_NONLINEAR_VISCOUS
186 43
*MAT_DAMPER_NONLINEAR_VISCOUS
187 43
*MAT_DAMPER_NONLINEAR_VISCOUS
188 43
*MAT_DAMPER_NONLINEAR_VISCOUS
189 43
*MAT_DAMPER_NONLINEAR_VISCOUS
190 43
*MAT_DAMPER_NONLINEAR_VISCOUS
191 44
*MAT_DAMPER_NONLINEAR_VISCOUS
192 44
*MAT_DAMPER_NONLINEAR_VISCOUS
193 45
*MAT_DAMPER_NONLINEAR_VISCOUS
194 45
*MAT_DAMPER_NONLINEAR_VISCOUS
195 44
*MAT_DAMPER_NONLINEAR_VISCOUS
196 44
*MAT_DAMPER_NONLINEAR_VISCOUS
197 45
*MAT_DAMPER_NONLINEAR_VISCOUS
198 45
*MAT_DAMPER_NONLINEAR_VISCOUS
199 46
*MAT_DAMPER_NONLINEAR_VISCOUS
200 47
*MAT_DAMPER_NONLINEAR_VISCOUS
201 47
*MAT_DAMPER_NONLINEAR_VISCOUS
202 48
*MAT_DAMPER_NONLINEAR_VISCOUS
203 49
*MAT_DAMPER_NONLINEAR_VISCOUS
204 46
*MAT_DAMPER_NONLINEAR_VISCOUS
205 47
*MAT_DAMPER_NONLINEAR_VISCOUS
206 47
*MAT_DAMPER_NONLINEAR_VISCOUS
207 48
*MAT_DAMPER_NONLINEAR_VISCOUS
208 49
$
$
$$$$$$$$ Sections
$
$
$$$$ Shell Sections
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
1 0 0.000E+00 0.000E+00 0.000E+00
$ t1 t2 t3 t4 nloc
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
2 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
3 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
4 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
5 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
6 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
7 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
8 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
9 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
10 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
11 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
12 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
13 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
14 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
15 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
16 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
17 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
18 0 0.000E+00 0.000E+00 0.000E+00
1.000E-01 1.000E-01 1.000E-01 1.000E-01 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
19 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
20 0 0.000E+00 1.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
21 0 0.000E+00 1.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
*SECTION_SHELL
$ sid elform shrf nip propt qr/irid icomp
22 0 0.000E+00 0.000E+00 0.000E+00
1.000E-02 1.000E-02 1.000E-02 1.000E-02 0.000E+00
$
$
$$$$ Spring-Damper Sections
$
*SECTION_DISCRETE
101 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
102 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
103 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
104 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
105 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
106 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
107 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
108 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
109 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
110 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
111 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
112 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
113 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
114 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
115 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
116 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
117 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
118 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
119 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
120 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
121 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
122 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
123 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
124 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
125 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
126 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
127 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
128 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
129 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
130 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
131 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
132 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
133 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
134 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
135 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
136 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
137 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
138 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
139 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
140 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
141 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
142 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
143 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
144 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
145 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
146 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
147 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
148 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
149 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
150 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
151 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
152 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
153 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
154 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
155 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
156 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
157 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
158 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
159 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
160 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
161 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
162 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
163 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
164 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
165 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
166 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
167 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
168 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
169 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
170 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
171 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
172 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
173 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
174 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
175 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
176 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
177 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
178 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
179 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
180 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
181 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
182 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
183 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
184 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
185 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
186 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
187 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
188 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
189 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
190 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
191 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
192 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
193 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
194 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
195 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
196 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
197 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
198 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
199 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
200 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
201 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
202 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
203 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
204 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
205 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
206 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
207 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
*SECTION_DISCRETE
208 1 0.000E+00 0.000E+00 0.000E+00 0.000E+00
0.000E+00 0.000E+00
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$$$$ Define Nodes and Elements
$
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$
$...>....1....>....2....>....3....>....4....>....5....>....6....>....7....>....8
$
$
*END
