Material
Anisotropic

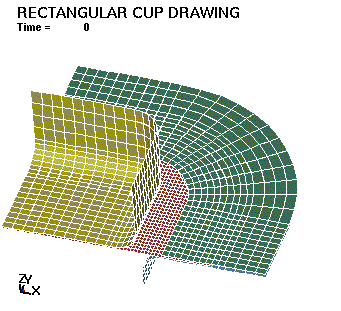

This problem includes three tools a punch, a holder and a die, and a blank. The blank is drawn by moving the punch downwards to form around the die. The blank uses the *MAT_TRANSVERSELY_ANISOTROPIC_ELASTIC_PLASTIC material model.
Foam
This problem contains a single element with one degree of freedom on a side. The element compresses and expands.
Plasticity

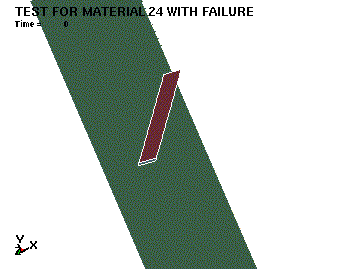

A plate of 1,200 Belytschko-Tsay shell elements strikes a wall at an angle of 45 degrees from the wall normal. The impact velocity is 20,775 in/sec. and the termination time is 0.00025 seconds.
Rigid

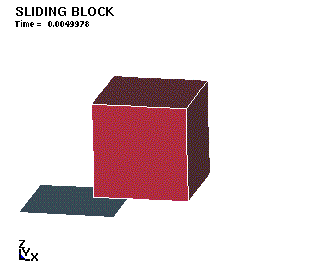

A center of mass is constrained to slide along a local coordinate system. The termination time is 0.010 seconds.
Rubber

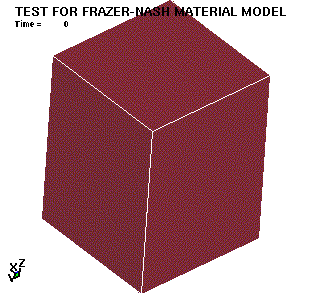

This model illustrates the behavior of the Frazer Nash rubber model using a single element.
Spring
This is a simulation of the interaction between a dummy and seating system. The dummy has an initial velocity, base vehicle acceleration, and decelerated base.
