*BOUNDARY_CONVECTION_SET
*BOUNDARY_TEMPERATURE_SET
*CONTROL_SOLUTION
*CONTROL_TERMINATION
*CONTROL_THERMAL_SOLVER
*DATABASE_BINARY_D3PLOT
*DATABASE_HISTORY_NODE
*DATABASE_TPRINT
*ELEMENT_SOLID
*END
*INITIAL_TEMPERATURE_SET
*KEYWORD
*MAT_THERMAL_ISOTROPIC
*NODE
*PART
*SECTION_SOLID
*SET_NODE_LIST_TITLE
*SET_SEGMENT_TITLE
*TITLE
*KEYWORD
*TITLE

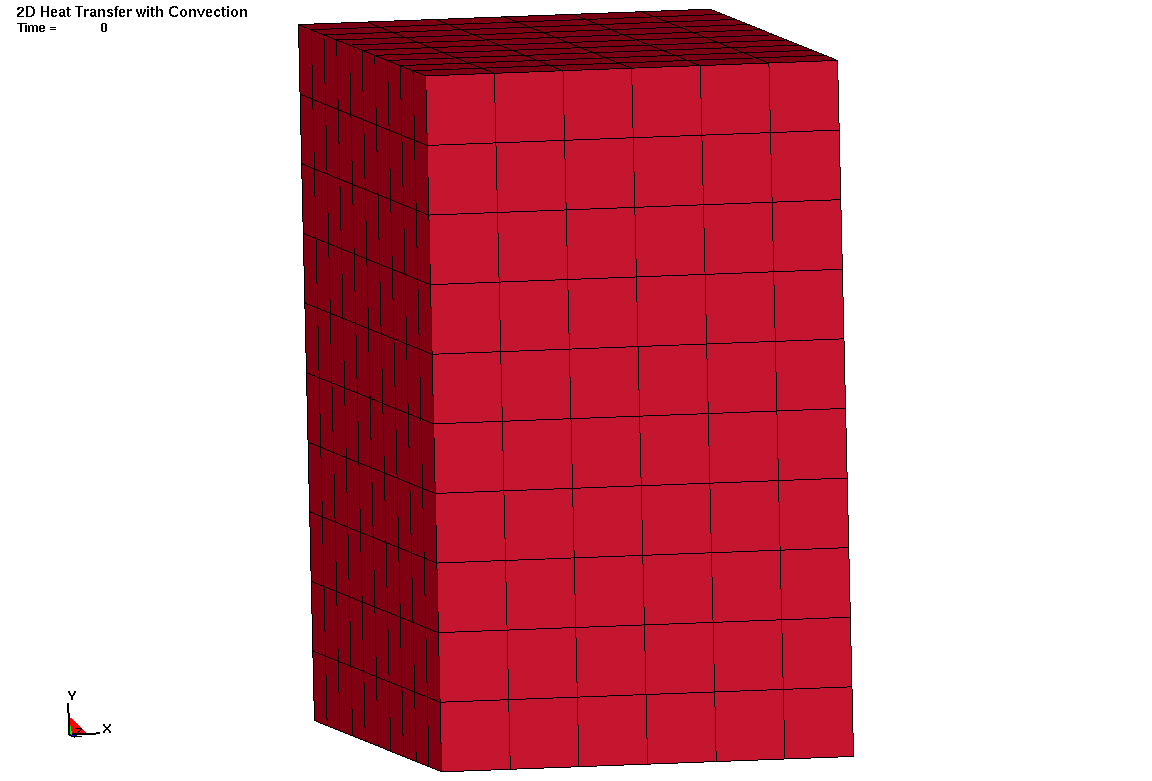

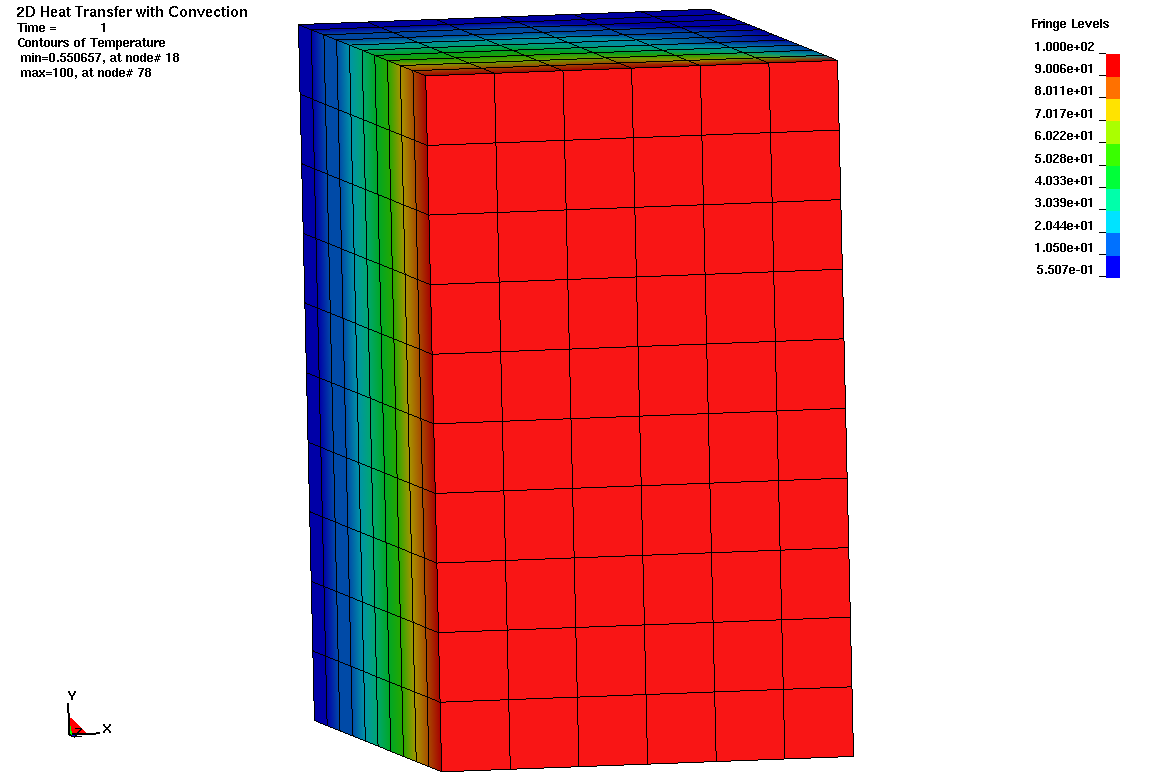

2D Heat Transfer with Convection
*CONTROL_SOLUTION
1 0 0 0
*CONTROL_THERMAL_SOLVER
0 0 3 1.00e-06 8 1.000000 1.000000 0.000000
*CONTROL_TERMINATION
1.000000 0 0.000 0.000 0.000
*DATABASE_TPRINT
1.000000 0 0 1
*DATABASE_HISTORY_NODE
225 171 371 372 373 374 375 376
377 378 379
*DATABASE_BINARY_D3PLOT
1.000000 0 0 0 0
*PART
1 1 0 0 0 0 0 1
*SECTION_SOLID
1 2 0
*MAT_THERMAL_ISOTROPIC
1 8000.000 0.000 0.000 0.000 0.000
1.000 52.0000
*BOUNDARY_CONVECTION_SET
1
0 750.00000 0 0.000 0
*BOUNDARY_CONVECTION_SET
2
0 750.00000 0 0.000 0
*BOUNDARY_TEMPERATURE_SET
1 0 100.00000 0
*INITIAL_TEMPERATURE_SET
1 100.00000 0
*SET_NODE_LIST_TITLE
frontt100
1 0.000 0.000 0.000 0.000
78 79 80 81 82 83 84 85
86 87 88 89 90 91 92 93
94 95 96 97 98 99 100 101
102 103 104 105 106 107 108 109
110 111 112 113 114 115 116 117
118 119 120 121 122 123 124 125
126 127 128 129 130 131 132 133
134 135 136 137 138 139 140 141
142 143 144 145 146 147 148 149
150 151 152 153 154 0 0 0
*SET_SEGMENT_TITLE
sidet0
1 0.000 0.000 0.000 0.000
*SET_SEGMENT_TITLE
backt0
2 0.000 0.000 0.000 0.000
*ELEMENT_SOLID
*NODE
*END
