*BOUNDARY_SPC_SET
*CONTROL_IMPLICIT_DYNAMICS
*CONTROL_IMPLICIT_GENERAL
*CONTROL_IMPLICIT_SOLUTION
*CONTROL_IMPLICIT_SOLVER
*CONTROL_TERMINATION
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_ELOUT
*DATABASE_EXTENT_BINARY
*DATABASE_HISTORY_BEAM
*DATABASE_HISTORY_NODE
*DATABASE_MATSUM
*DATABASE_NODOUT
*DATABASE_SPCFORC
*DEFINE_CURVE
*ELEMENT_BEAM
*ELEMENT_MASS
*END
*KEYWORD
*LOAD_NODE_SET
*MAT_ELASTIC
*NODE
*PART
*SECTION_BEAM
*SET_NODE_LIST
*TITLE
*KEYWORD
*TITLE

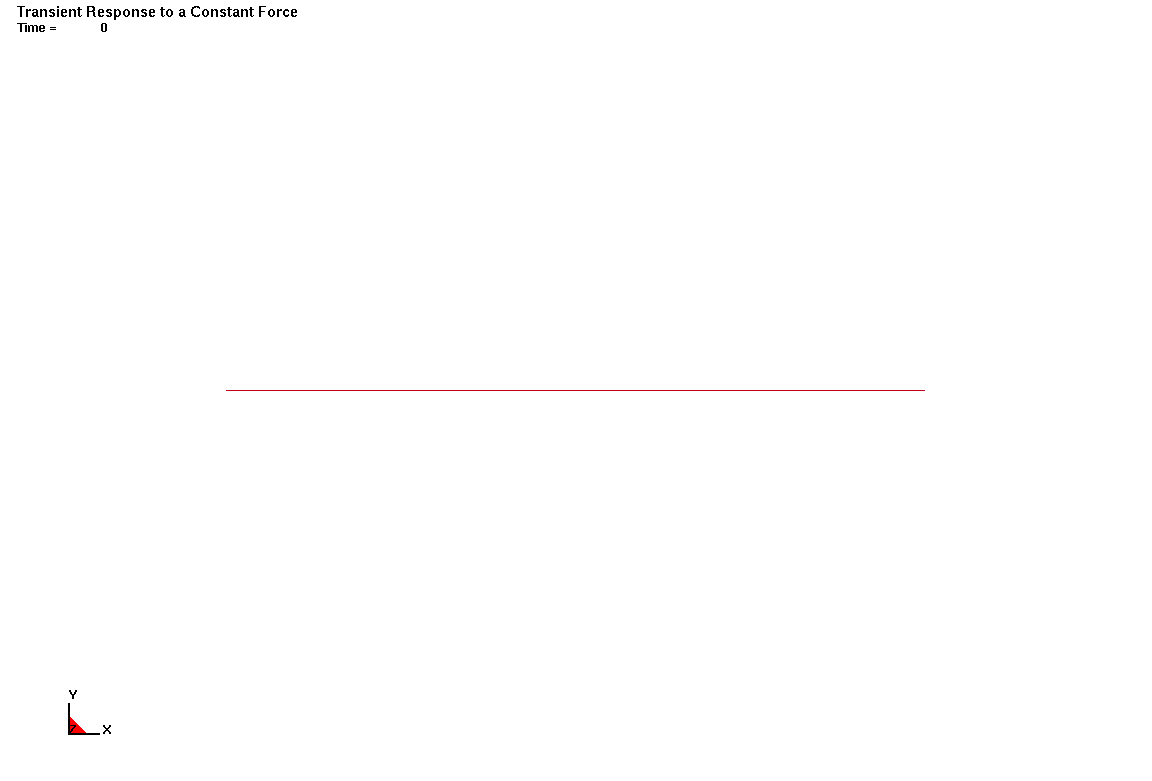

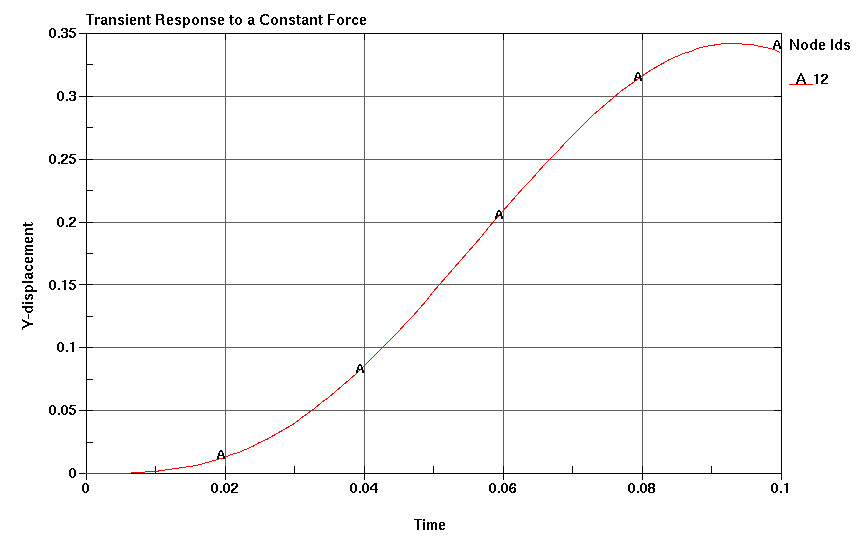

Transient Response to a Constant Force
*CONTROL_IMPLICIT_DYNAMICS
1 0.500000 0.250000
*CONTROL_IMPLICIT_GENERAL
1 0.001000 2 1 2
*CONTROL_IMPLICIT_SOLVER
4 2 2 0 1 0.0 1 0.0
2
*CONTROL_IMPLICIT_SOLUTION
2 11 15 0.0010 0.0100 1.00e+10 0.900000 1.00e-10
2 1 1 2
0 1 0.0 1 2
*CONTROL_TERMINATION
0.100000 0 0.900000 0.0 0.0
*DATABASE_ELOUT
1.0000e-05 1
*DATABASE_MATSUM
1.0000e-05 1
*DATABASE_NODOUT
1.0000e-05 1
*DATABASE_SPCFORC
1.0000e-05 1
*DATABASE_BINARY_D3PLOT
1.0000e-05
*DATABASE_BINARY_D3THDT
2.0000e-04
*DATABASE_EXTENT_BINARY
0 0 0 0 1 1 1 1
0 0 20 1 1 1 2
*DATABASE_HISTORY_NODE
12 1 2
*DATABASE_HISTORY_BEAM
10 11
*DEFINE_CURVE
1 0 1.000000 1.000000 0.0 0.0
0.0 0.0
0.07500000 2.0000000e+04
1.00000000 2.0000000e+04
*ELEMENT_BEAM
*ELEMENT_MASS
*NODE
*BOUNDARY_SPC_SET
*PART
1 1 1
*SECTION_BEAM
1 1 0.830000 4 0 0.0
1.647220 1.647220 18.0 18.0
*MAT_ELASTIC
11.0000e-203.0000e+07 0.300000 0.0 0.0 0.0
*LOAD_NODE_SET
1 2 1 1.000000
*SET_NODE_LIST
1 0.0 0.0 0.0 0.0
12
*SET_NODE_LIST
2 0.0 0.0 0.0 0.0
1 2
*SET_NODE_LIST
3 0.0 0.0 0.0 0.0
3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34
35 36 37 38 39 40 41
*END
