Joint I

This example illustrates the usage of *CONSTRAINED_JOINT keyword to model a revolute joint.

*CONSTRAINED_JOINT_REVOLUTE
*CONSTRAINED_JOINT_STIFFNESS_GENERALIZED
*CONTROL_STRUCTURED
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_BINARY_D3PLOT
*DATABASE_JNTFORC
*DEFINE_COORDINATE_NODE
*DEFINE_CURVE
*ELEMENT_SHELL
*END
*KEYWORD
*LOAD_RIGID_BODY
*MAT_ELASTIC
*MAT_RIGID
*NODE
*PART
*SECTION_SHELL
*TITLE

  *KEYWORD
  *control_structured
  *control_timestep
  ,.8
  *TITLE

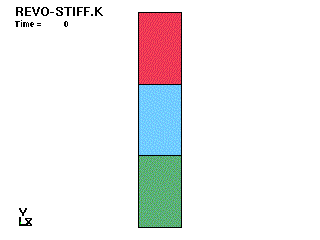

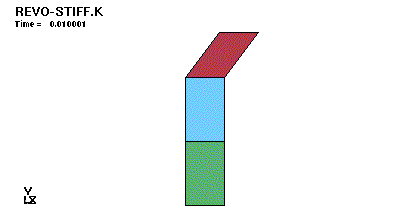

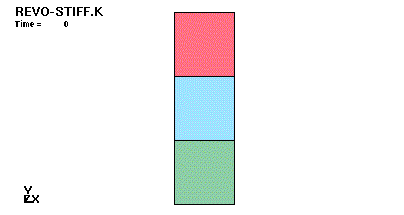

  revo-stiff.k
  *DEFINE_CURVE
  $  applied moment
           1         0 0.000E+00 0.000E+00 0.000E+00 0.000E+00
        0.00000000E+00      0.00000000E+00
  $      0.5e-2              100.
        1.00000000E-02       100.00000E+00
  *load_rigid_body
  1,5,1
  *database_jntforc
  5.e-4
  *CONSTRAINED_JOINT_REVOLUTE
           1         9         2        10         0         0 0.100E+01
  *constrained_joint_stiffness_generalized
  1,1,2,1,1
  $  stiffness via load curve
  $2

  $  stiffness via constant k, 2nd number is yield moment
  191,80
  $     load curve 3 for yield moment  (can't get this to work
  $191,-3
  $  stop angles

  *define_coordinate_node
  1,1,2,3
  *define_curve
  $  stiffness = 100 per 30 deg  = 191 moment units per radian
  2
  0,0
  $.5236,100
  1.0,191
  *define_curve
  3
  $  yield moment vs. rotation (rad)  -   yield moment = 100 at 60 degrees
  0,100
  1.052,200
  $*CONSTRAINED_JOINT_REVOLUTE
  $         2        10         1         9         0         0 0.100E+01
  *CONTROL_TERMINATION
   1.000E-02         0 0.000E+00         0 0.000E+00
  *DATABASE_BINARY_D3PLOT
   5.000E-04
  *MAT_RIGID
           1 7.000E-04 3.000E+07 3.000E-01 0.000E+00 0.000E+00 0.000E+00
   0.000E+00 0.000E+00 0.000E+00
   0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
  *MAT_RIGID
           2 7.000E-04 3.000E+07 3.000E-01 0.000E+00 0.000E+00 0.000E+00
   0.000E+00 0.000E+00 0.000E+00
   0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00 0.000E+00
  *MAT_ELASTIC
           3 7.000E-04 3.000E+07 3.000E-01
  *SECTION_SHELL
           1         0 0.000E+00 0.000E+00 0.000E+00 0.000E+00
   1.000E-01 1.000E-01 1.000E-01 1.000E-01 0.000E+00
  *SECTION_SHELL
           2         0 0.000E+00 0.000E+00 0.000E+00 0.000E+00
   1.000E-01 1.000E-01 1.000E-01 1.000E-01 0.000E+00
  *SECTION_SHELL
           3         0 0.000E+00 0.000E+00 0.000E+00 0.000E+00
   1.000E-01 1.000E-01 1.000E-01 1.000E-01 0.000E+00
  *PART

           1         1         1         0
  *PART

           2         2         2         0
  *PART

           3         3         3         0
  *NODE
  $
  *ELEMENT_SHELL
  $
  *END
