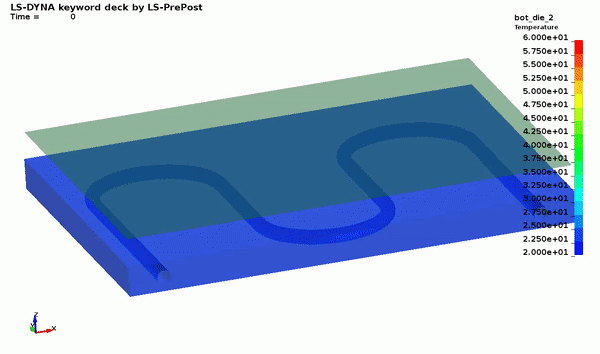

Advanced : Tool cooling

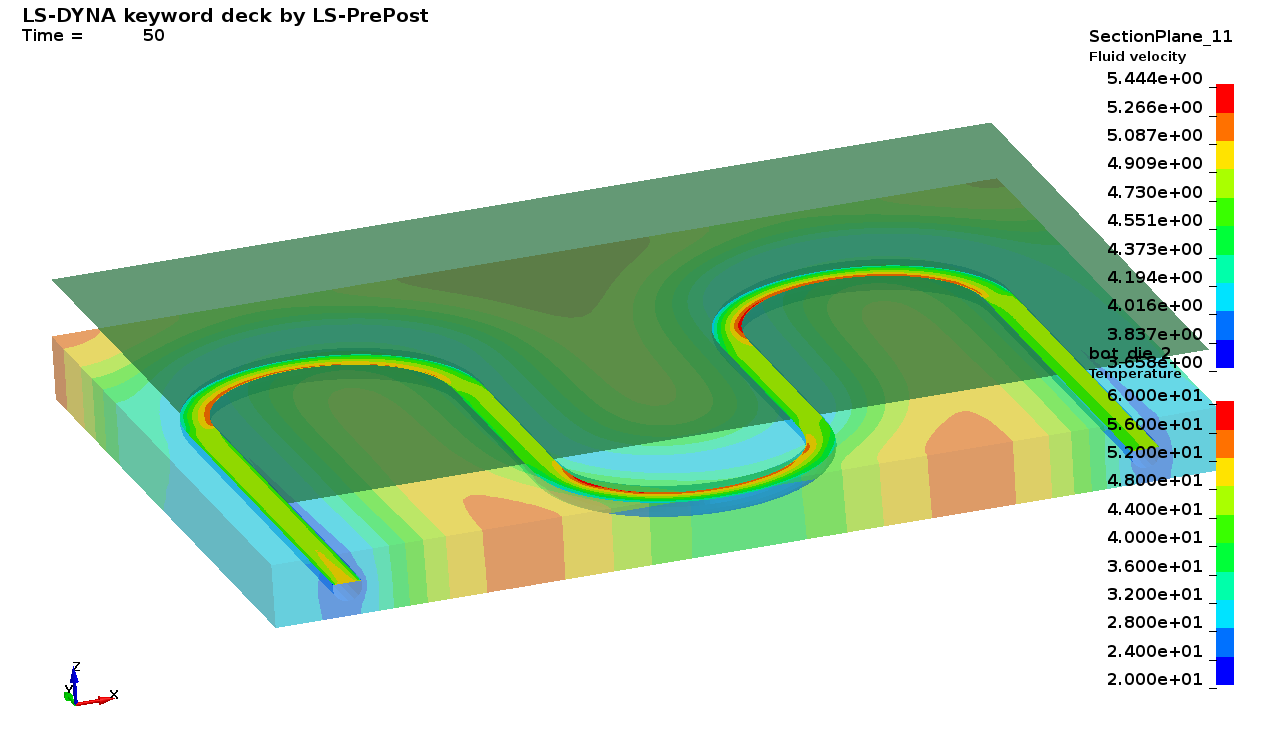

Fluid Temperature fringes
*KEYWORD *TITLE *BOUNDARY_PRESCRIBED_MOTION_RIGID *CONTACT_SURFACE_TO_SURFACE_THERMAL *CONTROL_CONTACT *CONTROL_TERMINATION *CONTROL_THERMAL_SOLVER *CONTROL_THERMAL_TIMESTEP *CONTROL_TIMESTEP *CONTROL_SHELL *CONTROL_SOLUTION *DATABASE_BINARY_D3PLOT *DATABASE_FORMAT *DATABASE_TPRINT *DEFINE_CURVE_TITLE *ELEMENT_SHELL *ELEMENT_SOLID *INITIAL_TEMPERATURE_SET *ICFD_BOUNDARY_CONJ_HEAT *ICFD_BOUNDARY_FSI *ICFD_BOUNDARY_NONSLIP *ICFD_BOUNDARY_PRESCRIBED_PRE *ICFD_BOUNDARY_PRESCRIBED_VEL *ICFD_CONTROL_CONJ *ICFD_CONTROL_FSI *ICFD_CONTROL_MESH *ICFD_CONTROL_MESH_MOV *ICFD_CONTROL_OUTPUT *ICFD_CONTROL_TIME *ICFD_CONTROL_TURBULENCE *ICFD_DATABASE_FLUX *ICFD_INITIAL *ICFD_MAT *ICFD_PART *ICFD_PART_VOL *ICFD_SECTION *INCLUDE *MAT_RIGID *MAT_THERMAL_ISOTROPIC *MESH_BL *MESH_BL_SYM *MESH_SURFACE_ELEMENT *MESH_SURFACE_NODE *MESH_VOLUME *PART *SECTION_SHELL *END
*KEYWORD
$-----------------------------------------------------------------------------
$
$ Example provided by Iñaki (LSTC)
$
$ E-Mail: info@dynamore.de
$ Web: http://www.dynamore.de
$
$ Copyright, 2015 DYNAmore GmbH
$ Copying for non-commercial usage allowed if
$ copy bears this notice completely.
$
$X------------------------------------------------------------------------------
$X
$X 1. Run file as is.
$X Requires LS-DYNA MPP Dev svn 118500 (or higher) with double precision
$X
$X------------------------------------------------------------------------------
$X------------------------------------------------------------------------------
$# UNITS: kg / m / s / N / Pa / Nm (J) / Pa*s
$X------------------------------------------------------------------------------
$X
*KEYWORD
*TITLE
Tool cooling
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ $
$ ICFD CONTROL CARDS $
$ $
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*ICFD_CONTROL_CONJ
0
*ICFD_CONTROL_FSI
1
*ICFD_CONTROL_GENERAL
1 0
*ICFD_CONTROL_MESH
$# mgsf - mstrat 2dstruc nrmsh
1
*ICFD_CONTROL_MESH_MOV
$# mmsh
-1
*ICFD_CONTROL_OUTPUT
$# msgl outl dtout lsppout
3 0 0.0 1 &it_plot
*ICFD_CONTROL_TURBULENCE
$# tmod submod wlaw
1 1 1
*ICFD_CONTROL_STEADY
&it_fluid 1e-8 1e-8 1e-12 1 1 0.25 1
*DEFINE_CURVE_TITLE
ICFD dt scale factor
7
$# a1 o1
0.0 1.0
1.0 1.0
2.0 20.0
25 20.0
26 100.0
1000 100.0
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ $
$ ICFD PARTS/ SECTION/ MATERIAL $
$ $
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*ICFD_MAT_TITLE
water
$# mid flg ro vis
1 1&rho_fluid &mu_fluid
&hc_fluid &tc_fluid
*ICFD_PART_TITLE
Wall
$# pid secid mid
5 1 1
*ICFD_PART_TITLE
Inlet
$# pid secid mid
6 1 1
*ICFD_PART_TITLE
Outlet
$# pid secid mid
7 1 1
*ICFD_PART_VOL
$# pid secid mid
10 1 1
$# spid1 spid2 spid3 spid4 spid5 spid6 spid7 spid8
5 6 7 0 0 0 0 0
*ICFD_SECTION
$# sid
1
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ $
$ ICFD BOUNDARY/INITIAL/LOAD CONDITIONS $
$ $
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*ICFD_BOUNDARY_CONJ_HEAT
$# pid
5
*ICFD_BOUNDARY_FSI
$# pid
5
*ICFD_BOUNDARY_NONSLIP
$# pid
5
*ICFD_BOUNDARY_PRESCRIBED_PRE
$# pid lcid sf death birth
7 9 1.01.00000E28 0.0
*ICFD_BOUNDARY_PRESCRIBED_TEMP
$# pid lcid sf death birth
6 10 1.01.00000E28 0.0
*ICFD_BOUNDARY_PRESCRIBED_VEL
$# pid dof vad lcid sf vid death birth
6 1 1 9 1.0 01.00000E28 0.0
*ICFD_BOUNDARY_PRESCRIBED_VEL
$# pid dof vad lcid sf vid death birth
6 3 1 9 1.0 01.00000E28 0.0
*ICFD_BOUNDARY_PRESCRIBED_VEL
$# pid dof vad lcid sf vid death birth
6 2 1 8 1.0 01.00000E28 0.0
*ICFD_INITIAL
$# pid vx vy vz t p
0 0.0 0.0 0.0 &T_init 0.0
*DEFINE_CURVE_TITLE
Inlet velocity
$# lcid sidr sfa sfo offa offo dattyp lcint
8 0 1.0 &v_inlet 0.0 0.0 0 0
$# a1 o1
0.0 1.0
100.0 1.0
*DEFINE_CURVE_TITLE
Reference pressure
$# lcid sidr sfa sfo offa offo dattyp lcint
9 0 1.0 1.0 0.0 0.0 0 0
$# a1 o1
0.0 0.0
100.0 0.0
*DEFINE_CURVE_TITLE
Inlet Temperature
$# lcid sidr sfa sfo offa offo dattyp lcint
10 0 1.0 &T_inlet 0.0 0.0 0 0
$# a1 o1
0.0 1.0
100.0 1.0
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ $
$ ICFD MESH KEYWORDS $
$ $
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*MESH_BL
$# pid nelth blth blfe blst
5 2 9e-4 3.0e-4 1
*MESH_BL_SYM
$# pid1 pid2 pid3 pid4 pid5 pid6 pid7 pid8
6 7 0 0 0 0 0 0
*MESH_VOLUME
$# volid
1
$# pid1 pid2 pid3 pid4 pid5 pid6 pid7 pid8
5 6 7 0 0 0 0 0
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
$ $
$ DATABASE (OUTPUT) $
$ $
$---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
*ICFD_DATABASE_FLUX
6
*ICFD_DATABASE_FLUX
7
*END
This example shows two different ways of solving an large cooling problem. In the first input deck set, the fluid is solved using the transient solver and the LES turbulence model, after steady state has been reached, velocity and pressure are no longer updated, allowing the conjugate heat transfer problem to proceed. In the second input deck, the steady state solver and the RANS standard k-epsilon turbulence model are used in order to reach a steady state for the fluid before solving the coupled thermal only problem. Please note that the cooling effect of the surrounding air as well as any potential heat radiation effects have not been taken into account.
