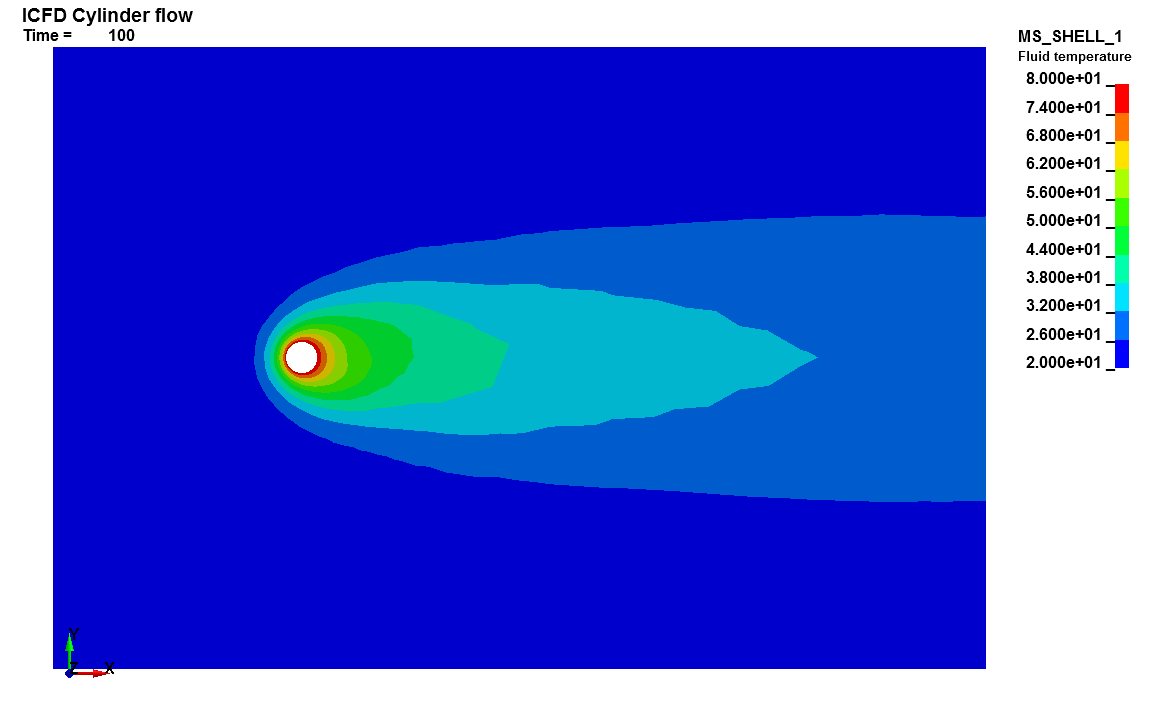

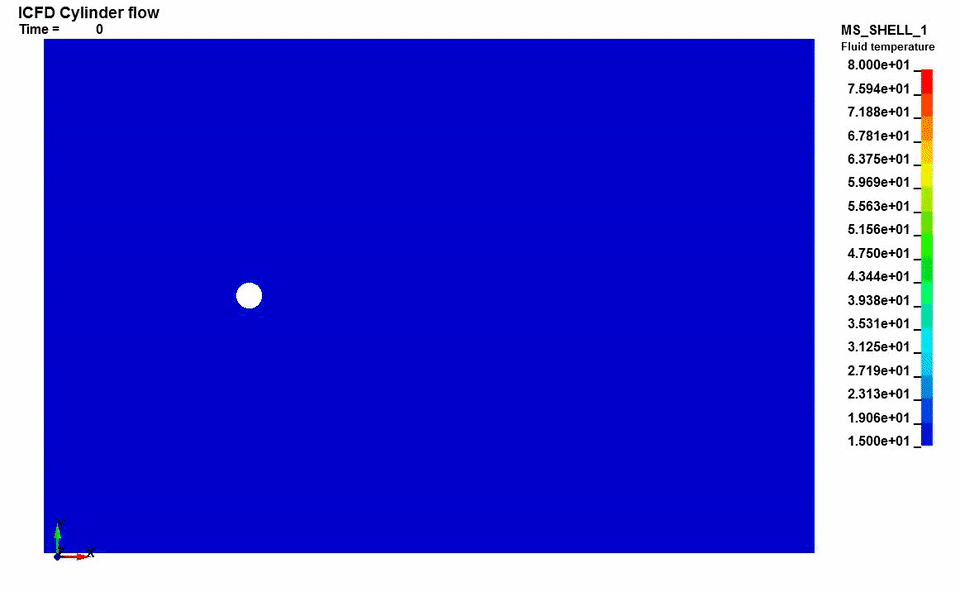

This LS-DYNA simulation shows a simple ICFD forced convection input deck with a coarse mesh. Compared to the basic cylinder flow problem, this problem adds the keywords to solve the heat equation. A 20 degree cooling wave flows over a hot cylinder that maintains a constant temperature of 80 degrees. The domain is initialized at 10 degrees.
https://www.dynaexamples.com/icfd/basics-examples/thermal_flow
https://www.dynaexamples.com/@@site-logo/LS-DYNA-Examples-Logo480x80.png
Basics : Thermal flow
This LS-DYNA simulation shows a simple ICFD forced convection input deck with a coarse mesh. Compared to the basic cylinder flow problem, this problem adds the keywords to solve the heat equation. A 20 degree cooling wave flows over a hot cylinder that maintains a constant temperature of 80 degrees. The domain is initialized at 10 degrees.
This LS-DYNA simulation shows a simple ICFD forced convection input deck with a coarse mesh. Compared to the basic cylinder flow problem, this problem adds the keywords to solve the heat equation. A 20 degree cooling wave flows over a hot cylinder that maintains a constant temperature of 80 degrees. The domain is initialized at 10 degrees.
Fluid velocity fringes
*KEYWORD *TITLE *DATABASE_BINARY_D3PLOT *DEFINE_CURVE_TITLE *ICFD_BOUNDARY_FREESLIP *ICFD_BOUNDARY_PRESCRIBED_PRE *ICFD_BOUNDARY_PRESCRIBED_TEMP *ICFD_BOUNDARY_PRESCRIBED_VEL *ICFD_BOUNDARY_NONSLIP *ICFD_CONTROL_TIME *ICFD_DATABASE_DRAG *ICFD_INITIAL *ICFD_MAT *ICFD_PART *ICFD_PART_VOL *ICFD_SECTION *INCLUDE *MESH_BL *MESH_SURFACE_ELEMENT *MESH_SURFACE_NODE *MESH_VOLUME *PARAMETER *END
$----------------------------------------------------------------------------- $ $ Example provided by Iñaki (LSTC) $ $ E-Mail: info@dynamore.de $ Web: http://www.dynamore.de $ $ Copyright, 2015 DYNAmore GmbH $ Copying for non-commercial usage allowed if $ copy bears this notice completely. $ $X------------------------------------------------------------------------------ $X $X 1. Run file as is. $X Requires LS-DYNA MPP R8.0.0 (or higher) with double precision $X $X------------------------------------------------------------------------------ $# UNITS: Dimensionless. $X------------------------------------------------------------------------------ $X *KEYWORD *TITLE ICFD Cylinder flow *INCLUDE mesh.k $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ PARAMETERS $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *PARAMETER R T_end 100.0 R dt_plot 1.00 $ $--- Fluid $ R v_inlet 1.0 Rrho_fluid 1.0 R mu_fluid 0.005 R dt_fluid 0.000 RTemp_init 10.000 RTemp_inle 20.000 R Temp_cyl 80.000 R HC_fluid 1000. R TC_fluid 200. $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ ICFD CONTROL CARDS $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *ICFD_CONTROL_TIME $# ttm dt &T_end &dt_fluid $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ ICFD PARTS/ SECTION/ MATERIAL $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *ICFD_SECTION $# sid 1 *ICFD_MAT $# mid flg ro vis 1 1&rho_fluid &mu_fluid $# hc tc &HC_fluid &tc_fluid *ICFD_PART $# pid secid mid 1 1 1 *ICFD_PART $# pid secid mid 2 1 1 *ICFD_PART $# pid secid mid 3 1 1 *ICFD_PART $# pid secid mid 4 1 1 *ICFD_PART_VOL $# pid secid mid 10 1 1 $# spid1 spid2 spid3 spid4 1 2 3 4 $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ ICFD BOUNDARY/INITIAL CONDITIONS $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *ICFD_BOUNDARY_PRESCRIBED_VEL $# pid dof vad lcid 1 1 1 1 *ICFD_BOUNDARY_PRESCRIBED_VEL $# pid dof vad lcid 1 2 1 2 *ICFD_BOUNDARY_PRESCRIBED_TEMP $# pid lcid 1 3 *ICFD_BOUNDARY_PRESCRIBED_PRE $# pid lcid 2 2 *ICFD_BOUNDARY_FREESLIP $# pid 3 *ICFD_BOUNDARY_NONSLIP $# pid 4 *ICFD_BOUNDARY_PRESCRIBED_TEMP $# pid lcid 4 4 *ICFD_INITIAL $# pid vx vy vz temp 0 10. *DEFINE_CURVE_TITLE Velocity inlet $# lcid sidr sfa sfo offa offo dattyp 1 &v_inlet $# a1 o1 0.0 1.0 10000.0 1.0 *DEFINE_CURVE_TITLE Pressure outlet $# lcid sidr sfa sfo offa offo dattyp 2 $# a1 o1 0.0 0.0 10000.0 0.0 *DEFINE_CURVE_TITLE Temp inlet $# lcid sidr sfa sfo offa offo dattyp 3 &Temp_inle $# a1 o1 0.0 1.0 10000.0 1.0 *DEFINE_CURVE_TITLE Temp cylinder $# lcid sidr sfa sfo offa offo dattyp 4 &Temp_cyl $# a1 o1 0.0 1.0 10000.0 1.0 $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ ICFD MESH KEYWORDS $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *MESH_VOLUME $# volid 1 $# pid1 pid2 pid3 pid4 1 2 3 4 *MESH_BL $# pid nelth 4 2 $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 $ $ $ DATABASE (OUTPUT) $ $ $ $---+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8 *ICFD_DATABASE_DRAG $# pid 4 *DATABASE_BINARY_D3PLOT &dt_plot *END
