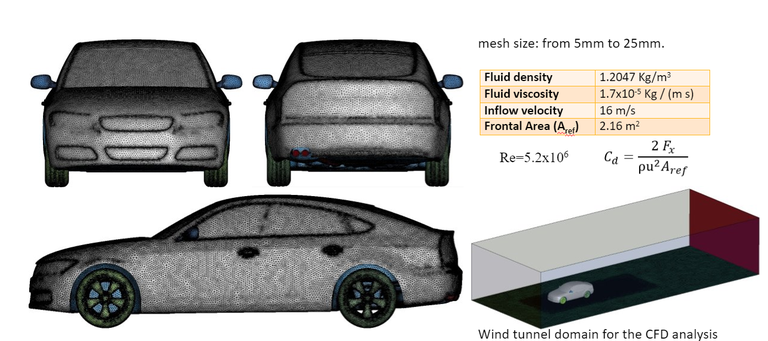

$ PROJECTED FRONTAL AREA = 2.16
$ Horizontal Area = 7.86
*keyword
$ center 715.308, 0, 754.527
$ # FLUID #
*ICFD_CONTROL_TIME
&T_end, &dt_fluid, 1
*ICFD_CONTROL_MESH
1.5
*ICFD_CONTROL_TURBULENCE
2
*ICFD_BOUNDARY_PRESCRIBED_VEL
5 , 1, 1, 3
*ICFD_BOUNDARY_PRESCRIBED_PRE
6 , 4
*ICFD_BOUNDARY_FREESLIP
7, 3, 4
*ICFD_BOUNDARY_NONSLIP
10001
10002
10003
10005
10006
10007
*DEFINE_CURVE
3 , 0, 1. , 1. , 0. , 0.
0.,16.
1e3,16.
*DEFINE_CURVE
4 , 0, 1. , 1. , 0. , 0.
0.,0.
1e3,0.
*ICFD_DATABASE_TIMESTEP
1

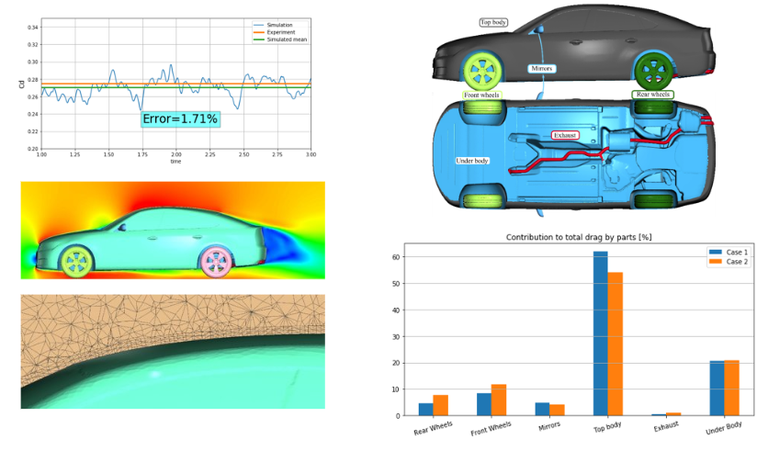

*ICFD_DATABASE_DRAG
10001,0,0,1,0,1
10002,0,0,1,0,1
10003,0,0,1,0,1
10005,0,0,1,0,1
10006,0,0,1,0,1
10007,0,0,1,0,1
*ICFD_MAT
1, 1, &rho_fluid,&mu_fluid
*ICFD_PART_TITLE
ground
3,1,1
*ICFD_PART_TITLE
roof
4,1,1
*ICFD_PART_TITLE
inflow
5,1,1
*ICFD_PART_TITLE
outflow
6,1,1
*ICFD_PART_TITLE
walls
7,1,1
*ICFD_PART
17,1,1
*ICFD_PART
10001,1,1
*ICFD_PART
10002,1,1
*ICFD_PART
10003,1,1
*ICFD_PART
10005,1,1
*ICFD_PART
10006,1,1
*ICFD_PART
10007,1,1
*ICFD_PART_VOL
8, 1, 1
3, 4, 5, 6, 7, 10001, 10002, 10003
10005, 10006, 10007
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
$$$ MESH GENERATION
*MESH_VOLUME
12
3, 4, 5, 6, 7, 10001, 10002, 10003
10005, 10006, 10007
*MESH_BL
10001, 3,0.01,0,0
10002, 3,0.01,0,0
10003, 3,0.01,0,0
10005, 3,0.01,0,0
10006, 3,0.01,0,0
10007, 3,0.01,0,0
$mirror driver
*MESH_SIZE_SHAPE
box,1
0.015,1.54,-1.25,0.4,5.5,-0.7,1.1
$mirror passenger
*MESH_SIZE_SHAPE
box,1
0.015,1.54,0.7,0.4,5.5,1.25,1.1
$wheels driver
*MESH_SIZE_SHAPE
box,1
0.015,0.33,-1.25,-0.5,5.5,-0.47,0.17
$wheels passenger
*MESH_SIZE_SHAPE
box,1
0.015,0.33,0.47,-0.5,5.5,1.25,0.17
$rear part
*MESH_SIZE_SHAPE
box,1
0.015,4.31,-1.0,-0.5,5.8,1.0,0.58
$rear roof
*MESH_SIZE_SHAPE
box,1
0.015,2.5,-0.6,0.51,4.38,0.6,0.91
$A pilar driver
*MESH_SIZE_SHAPE
cylinder,1
0.015,0.08, 1.4554, -0.758298, 0.444382, 2.10833, -0.613749, 0.825368
$A pilar passang
*MESH_SIZE_SHAPE
cylinder,1
0.015,0.08, 1.4554, 0.758298, 0.444382, 2.10833, 0.613749, 0.825368
$grill
*MESH_SIZE_SHAPE
box,1
0.015,-0.1,-0.85,-0.2,0.25,0.85,0.32
*END
