Bar B

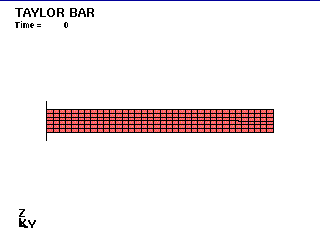

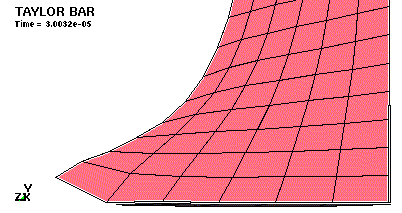

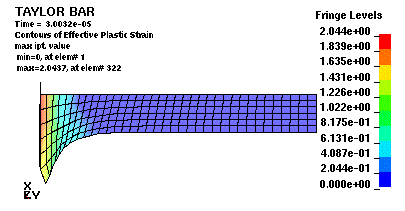

This is a quarter model of a Taylor bar impacting a rigid wall. In input deck B ALE smoothing and 1st order advection is used. During deformation process, elements at the bottom of the bar stay more well-shaped in comparison to input deck A. Calculation takes about double the time.

*CONTROL_ALE
*CONTROL_ENERGY
*CONTROL_TERMINATION
*CONTROL_TIMESTEP
*DATABASE_BINARY_D3PLOT
*DATABASE_BINARY_D3THDT
*DATABASE_GLSTAT
*ELEMENT_SOLID
*END
*INITIAL_VELOCITY
*KEYWORD
*MAT_PLASTIC_KINEMATIC
*NODE
*PART
*RIGIDWALL_PLANAR
*SECTION_SOLID
*SET_NODE_LIST
*TITLE

  *KEYWORD
  *TITLE
  Taylor bar
  *CONTROL_ALE
           0         1         1       1.0

  *CONTROL_TERMINATION
   3.00000-5
  *CONTROL_TIMESTEP
   0.0000000 0.7000000         0 0.0000000 0.0000000         0         0         0
  *CONTROL_ENERGY
           2         2         1         1
  *DATABASE_BINARY_D3PLOT
   1.0000-06                   0
  *DATABASE_GLSTAT
   1.0000-06
  *DATABASE_BINARY_D3THDT
   99999.000
  *MAT_PLASTIC_KINEMATIC
           1 8930.0000 1.1700+11 0.3500000 4.00000+8 1.00000+8 1.0000000
   0.0000000 0.0000000 0.0000000
  *INITIAL_VELOCITY

   0.0000000-280.00000 0.0000000
  *RIGIDWALL_PLANAR
           1         0         0
   0.0000000-0.0112000 0.0000000 0.0000000 0.9888000 0.0000000 0.0000000
  *SECTION_SOLID
           1         5
  *PART

           1         1         1         0         0         0         0         0
  *NODE
  $
  *ELEMENT_SOLID
  $
  *SET_NODE_LIST
           1
  $
  *END
